Barcode Scanner Module

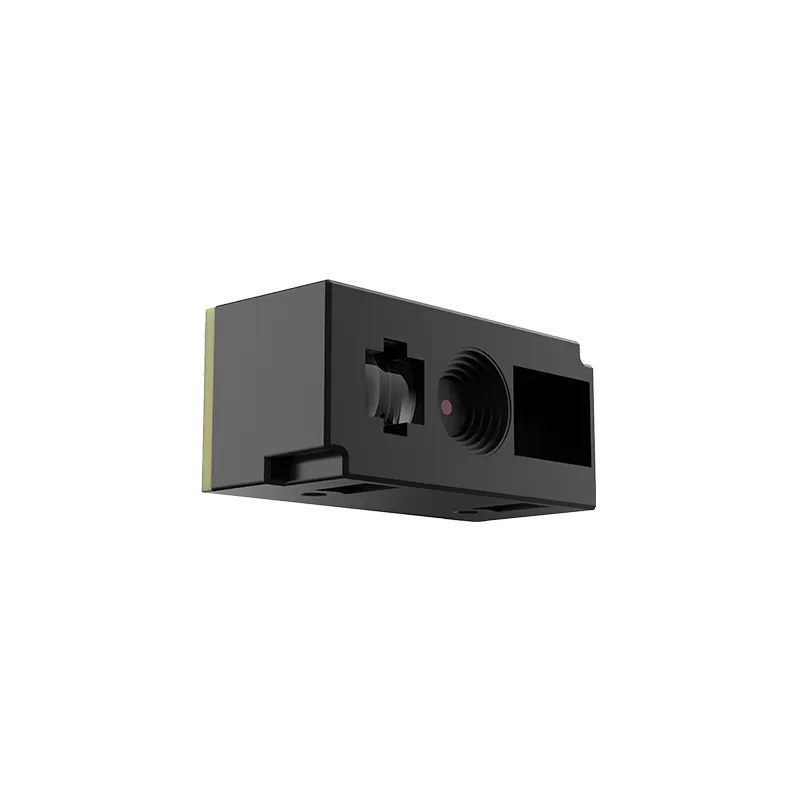

SE4631 1D 2D Barcode Scanner Module

  • Mini size, compact and lightweight design, easy to fit into scanning products.

  • The 4th generation I-SUBPIXEL algorithm.

  • Easily and quickly identify damaged, Distorted, Dirty, Fuzzy, Colorful, reflective, wrinkled, incomplete, folded barcodes.

  • Compatible with multiple products, suitable for such as tablet phablets, counting machines, data collectors, PDA, ring scanner, handheld scanner and so on.


DESCRIPTION

Our company proudly presents the 1D and 2D Barcode Scanner Module, a cutting-edge solution designed to revolutionize data capture and management across industries. This versatile module combines precision, speed, and adaptability, making it an invaluable asset for businesses seeking efficient and accurate barcode scanning capabilities.

1D 2D Barcode Scanner Module

Wavecreating is a well-established manufacturer of Barcode Scanner Module products. Aiming to make 1D and 2D scanners accessible to businesses of all sizes and budgets, we strive to provide easy and simple scanning solutions to our clients. Our products are widely used in manufacturing, retailing, postage, logistics and medical areas.


1d 2d Barcode Scanner Module Technical Parameters:


Scaning CodeImage Sensor640 X 480 CMOS
Light SourceFill Light: White 6500K LED / Aiming Light: Red LED
Horizontal View AngleHorizontal 37°, Vertical 28°
Symbologies

2D: QR 、PDF417、DataMatrix (ECC200)、Aztec、Micro QR、Hanxin Code、Maxicode、Micro PDF417、Code  16K

1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、

Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI-Plessey、Standard 2  of  5 、Plessey 、 China Post 、

GS1Databar (RSS-Expand, RSS-Limited, RSS-14, GS1 Composite)

Depth of FieldEAN-13:4.0~20.0cm (13mil)
Code128:4.5 ~ 25.0cm (15mil )
QR Code:4.0 ~ 18cm   (15mil)
Scan AngleRotation: 360°, Pitch: ±60°, Deflection: ± 60°
Resolution1D≥5mil
2D≥ 10mil
Symbol Contrast≥20%
Physical parameterWeight< 7g

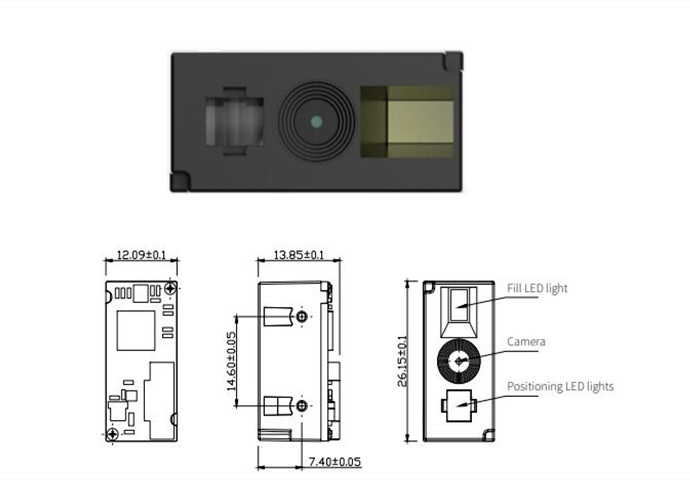

Dimensions26.15mmL * 12.09mmW * 13.85mmH
InterfaceUSB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232
VoltageDC +3.3V±5%
CurrentWorking: 170mA
Sleeping: 800 μA


1d 2d Barcode Scanner Module Key Features and Benefits:


◆ The 1D and 2D Barcode Scanner Module utilizes state-of-the-art imaging technology to decode both 1D (linear) and 2D (matrix) barcodes with remarkable speed and accuracy. From QR codes to traditional barcodes, it effortlessly scans a wide range of symbologies.

◆ This module seamlessly integrates with various devices, including point-of-sale systems, mobile devices, kiosks, and industrial machines. Its flexibility ensures compatibility with your existing hardware and software solutions.

◆ Experience lightning-fast data capture with minimal latency. The module's high-speed scanning capabilities enhance productivity and streamline operations in retail, logistics, healthcare, and more.

◆ Choose between continuous scanning and trigger-based scanning modes to suit different workflow requirements. The adjustable settings empower users to optimize scanning for their specific needs.

◆ Built to withstand demanding environments, the module is designed for long-lasting performance. Its rugged construction ensures reliability even in challenging conditions.

◆ Easily integrate the Barcode Scanner Module into your applications with our comprehensive software development kits (SDKs) and developer-friendly documentation. Seamlessly implement barcode scanning into your software solutions.

◆ Prioritize data security with the module's encryption and decryption capabilities. Protect sensitive information during transmission and storage.


1d 2d Barcode Scanner Module Applications:


◆ Retail: Enhance the checkout process, inventory management, and price verification in retail stores.

◆ Logistics and Warehousing: Streamline package tracking, inventory control, and shipping processes.

◆ Healthcare: Improve patient identification, medication management, and medical record accuracy.

 Manufacturing: Optimize quality control, parts tracking, and production management.

◆ Utilities: Facilitate meter reading and asset management in the utility sector.


Quality Assurance:


Our Barcode Scanner Module undergoes rigorous quality testing to ensure reliable and consistent performance. It complies with industry standards and is backed by our commitment to excellence.


1D 2D Barcode Scanner Module


Elevate your data capture and management capabilities with the 1D and 2D Barcode Scanner Module. Designed to empower businesses with precision and efficiency, this module is your key to enhanced productivity, reduced errors, and seamless integration. Experience the future of data capture today, and unlock new possibilities for your operations and applications.



In the barcode scan technology industry, Wavecreating has developed a wide variety of products Scan Engines, Stationary Scanners, Handheld Scanners, and Desktop Scanners. OEM is also available upon request.


1D 2D Barcode Scanner Module
