Omni-directional Barcode Scanner

SD5437 Handsfree Omni-directional Barcode Scanner

  • New generation LED solution.

  • High-performance customized CPU.

  • The 4th generation I-SUBPIXEL algorithm.

  • Motion tolerance up to 4.5m/s.

  • Wide range of depth of field, 0 distance scan code also be easily identified.

  • Support fuzzy/damaged/reversed/color/print problems/incomplete 1D/2D barcode.

  • Applicable to restaurants, supermarkets, hotels, governments and other intelligent scenarios.

  • Support Linux, Android, Windows and Mac OS systems


Hands-Free Omni Barcode Scanners have additional mirrors and reflective devices to transform one laser line into many at various different angles. These types of scanners are capable of providing faster scan rates even at long distances due to their wider reading areas and hands free operation. One of the biggest advantages of a Hands-Free Omnidirectional Barcode Scanner is that they are even able to read barcodes that have been damaged by heat, light, or the environment.

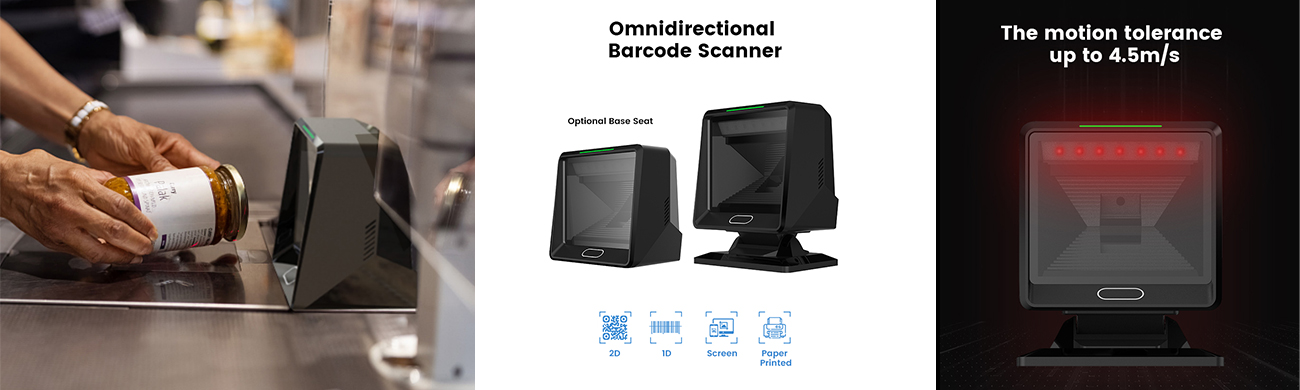

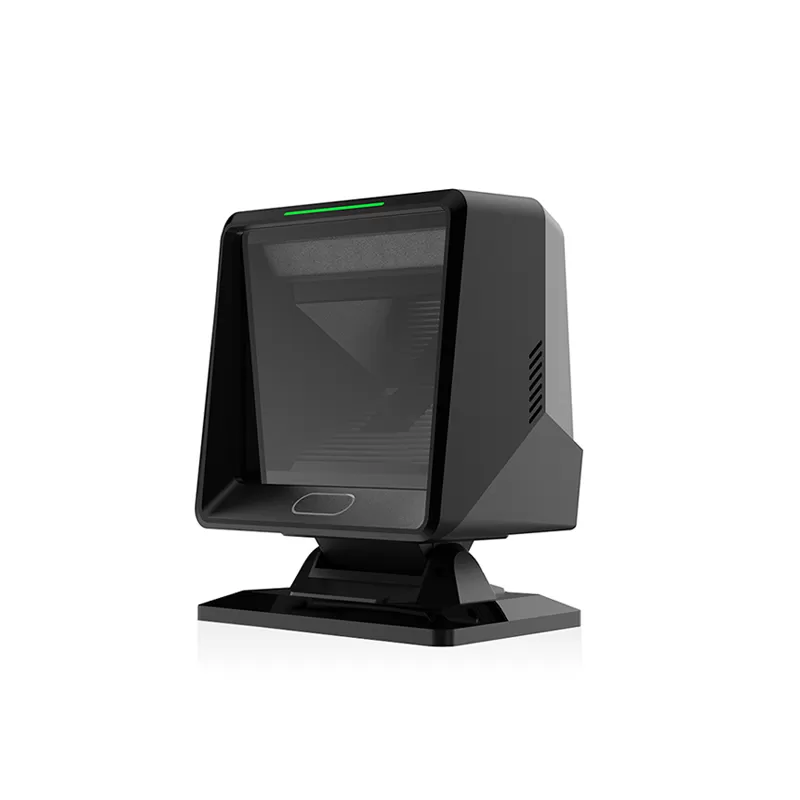

Omni-directional Barcode Scanner SD5437

Enhance your retail experience with the SD5437 Omnidirectional scanning solution, designed to cater to the diverse needs of retailers at an affordable cost. This compact, lightweight, and rugged device is optimized to elevate both customer satisfaction and employee efficiency. The SD5437 Omnidirectional scanner features an intuitively located sweet spot, ensuring ease of use, and offering a 365° range to effortlessly accommodate objects of varying sizes and shapes.

Contact our experienced sales team for expert advice on the best hands-free omni barcode scanners for you or your business.

Hands Free 2d Barcode Scanner Specification

Scan code


800 X 500 CMOS@120fps
Light source
Horizontal 48°, Vertical 32°
ReadCode system2D

QR Code、PDF417、DataMatrix (ECC200)、Micro QR 、Hanxin Code、Micro PDF417、Maxi Code、Aztec、Code49


EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar 、Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、 MSI Plessey 、RSS-14、RSS-Expand、RSS-Limited、Standard 2 of 5、Code 16K、Plessey、ChinaPost

Read Depth of fieldCode390 ~ 60mm (5mil)
EAN130 ~ 200mm (13mil)
CODE1280 ~ 350mm (15mil)
QR0 ~ 540mm (55mil)
Motion toleranceEAN13 Paper Code≥3.5m/s (tested 4cm from product surface)
Reading angle
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Reading mode
Inductive mode
Reading accuracy
1D ≥ 4mil / 2D ≥ 10mil
Symbol contrast
Physics ParametersWeight
< 450g (Excluding base),  < 550g (Including base)
Appearance size

133.57mm * 145.60mm * 100.28mm (Excluding base)

172.23mm * 145.6mm * 100.28mm (Including base

Line length
1.5 meters
Read tips
LED prompt, Buzzer
DC+5V ±5%
Operating current

Environment Parameters

Operating temperature
-20 ℃ ~ 60 ℃
Storage temperature
-40 ℃ ~ 70 ℃
Working humidity
5% RH ~ 95% RH (no condensation)
AccessoriesOptional accessories

Hands Free 2d Barcode Scanner Features

➽【Omnidirectional Automatic Barcode scanner】WCMI Barcode Scanner can easily capture bar codes 1D, 2D/QR on labels, paper, and mobile phone or computer displays, Sensitive and accurately and you can easily scan damaged barcodes, distorted barcodes, colorful barcodes and reflective barcode, etc special barcode. Perfect for retail and other high-volume scanning applications.

➽【Automatic Smart Sensing Scanning】Specially equipped with an induction trigger, the desktop barcode scanner supports auto-sensing scanning, barcode recognition more intelligent. When you do not use the barcode scanner for a while, it will be in sleeping mode. When the hands-free barcode scanner is in sleeping mode, it will automatically be activated once the item moves and the barcode is under the window to upload to your device.

➽【Non-slip Base and Anti-shock Design】Our Handsfree Omnidirectional Barcode Scanner can be directly placed on the desk, the anti-slip base makes it more stable, Built-in anti-vibration system can avoid damage while falling from a height of 4.92 feet. IP54 technology protects the wireless barcode scanner from dust.

➽【Improve Your Efficiency】Compared with a handheld barcode scanner, our handsfree barcode scanner freers your hands, no need to pick up the scanner when scanning, whether it is a cashier scanning goods, or a customer scanning the digital barcode from a smartphone. It can improve work efficiency and save time. Also, it is so easy to use, no need extra training necessary for new staff.

➽【Plug and Play, Easy to Use】No need to install any software or app, Our Hands-Free Omni-Directional QR Code Scanner Reader is plug and play. Easily connected to your laptop, PC, and POS by USB Cable. Ideal work for Windows XP/7/8/10, Mac OS, and Linux.

➽【Read both 1D and 2D Code】Advanced chip and decoder, support decoding of various barcode types.

➽【Widely Used】Having high sensitivity, fast scanning speed, stable performance and high recognition rate, it is widely used in supermarkets, convenience stores, retail shops, libraries, drugstores, catering services and other industries that need payment scanning.

➽【OEM&ODM】We can provide Packaging/Colour/Label/LOGO/Customized PCBAs/ Customized Modules/Algorithm Licenses/ Related Products and Solutions.

For bulk discounts, installation, support, warranty and maintenance service, please contact us.

Our Services

1. Your inquiry will be replied within 24 hours.
2. Well-trained & experienced sales can reply to your inquiries in English.
3. OEMs are highly welcomed.
4. Our cooperating shipping agent will offer you the best shipping price.
5. The order will be produced exactly according to order details and proofed samples.
6. Your business relationship with us will be confidential to any third party.
7. Our staff are ready to give our sincere service to you.

Our Advantages

+ Factory Direct Sale, provide better price

+ ISO9001, ISO14001, ISO45001 Standard

+ CE, RoHS, FCC, IP52 certificates and products patent

+ Strong technology team with 21 years of experience, own independent decoding algorithm

+ Support OEM/ODM, have private mold
