Barcode Scanner Module

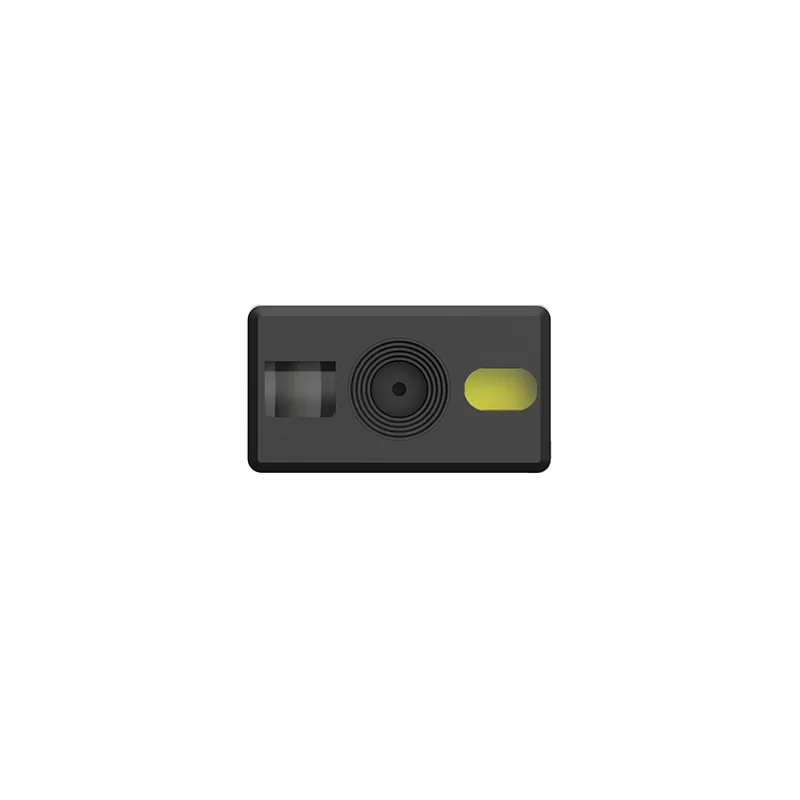

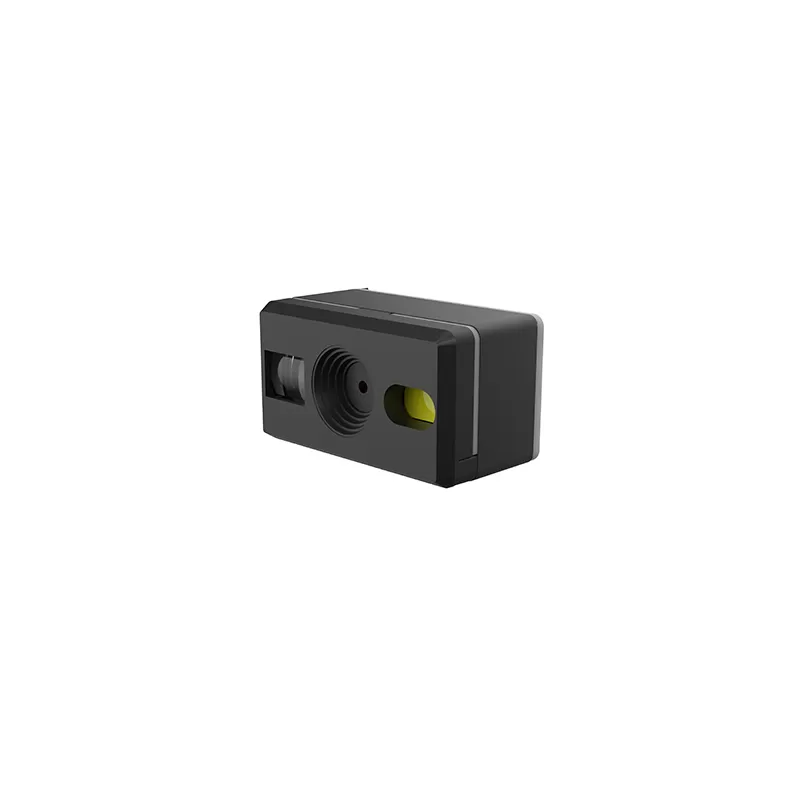

QL1601 1D 2D Barcode Scanning Engine

  • High integration, excellent performance, flexible and convenient.

  • Small size, light weight, easier to fit scanning products.The 4th generation I-SUBPIXEL algorithm.

  • Fast screen barcode capture, whether in high brightness or low brightness screen.

  • Smooth decoding of damaged, distorted, dirty, blurred, colored, reflective, wrinkled, incomplete, folded bar codes.

  • Suitable for handheld barcode scanner and PDA etc.

QL1601 1D 2D Barcode Scanning Engine

DESCRIPTION

Scaning CodeImage Sensor640 X 480 CMOS
Light SourceWhite LED
Horizontal View AngleHorizontal 31°
Symbologies

2D:QR 、PDF417、DataMatrix(ECC200)、Aztec、Han Xin code、Maxicode、Micro QR、Micro PDF417、

       GS1 Composite、Code 16K

1D:EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、

        Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI-Plessey、Standard 2 of 5、Plessey、China Post、

        GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)

Depth of FieldEAN-13:4.0~20.0cm (13mil)
Code128:4.5 ~ 25.0cm (15mil )
QR Code:4.0 ~ 18cm   (15mil)
Scan AngleRotation: 360°, Pitch: ±60°, Deflection: ± 60°
Resolution1D≥5mil
2D≥ 10mil
Symbol Contrast≥20%
Physical parameterWeight< 7g
Dimensions21.4mm x 12.5mm x 11.8mm
InterfaceUSB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232
VoltageDC +3.3V±5%
Current@DC 3.3VOperating:120mA
Sleep:500 μA
Environmental parametersOperating Temperature-20℃ ~ 60℃
Storage Temperature-40℃ ~ 70℃
Working  Humidity  5% RH~95% RH (Non-condensing)
ReliabilityAnti-mechanical shockShock:5~200Hz, 10Grms, 3axes, 1.5Hr
Fall:It can withstand falling from as high as 1.2 meters to the concrete floor.
Heat Shock ResistanceLowest Temperature:-20 °C (-4 °F)
Maximum Temperature:60 °C (140 °F)
Cycles:High Temperature: 30 minutesLow Temperature: 30 minutes
Period:24h
