Wired Barcode Scanner

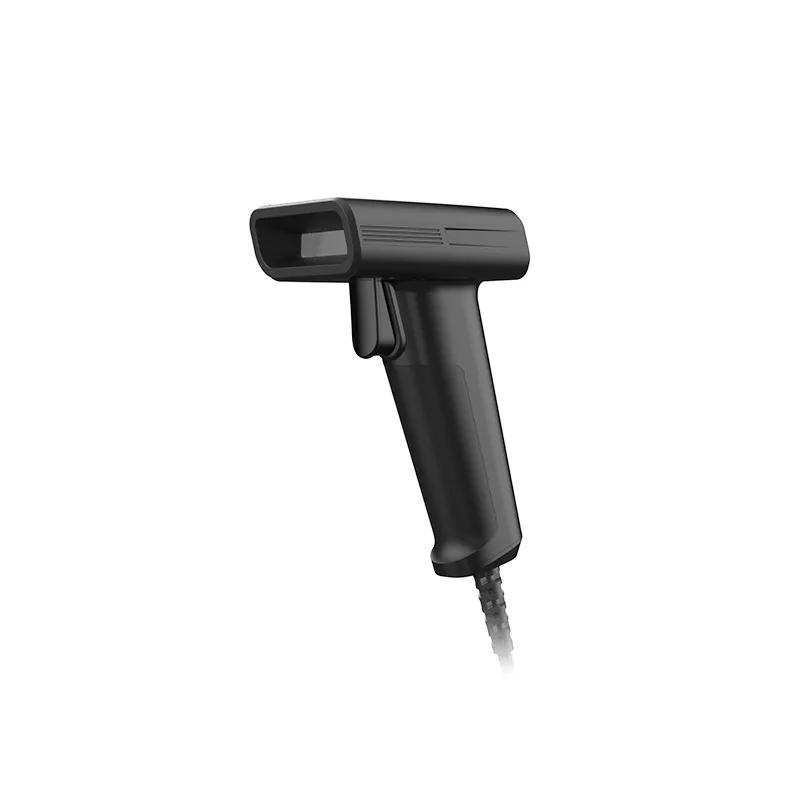

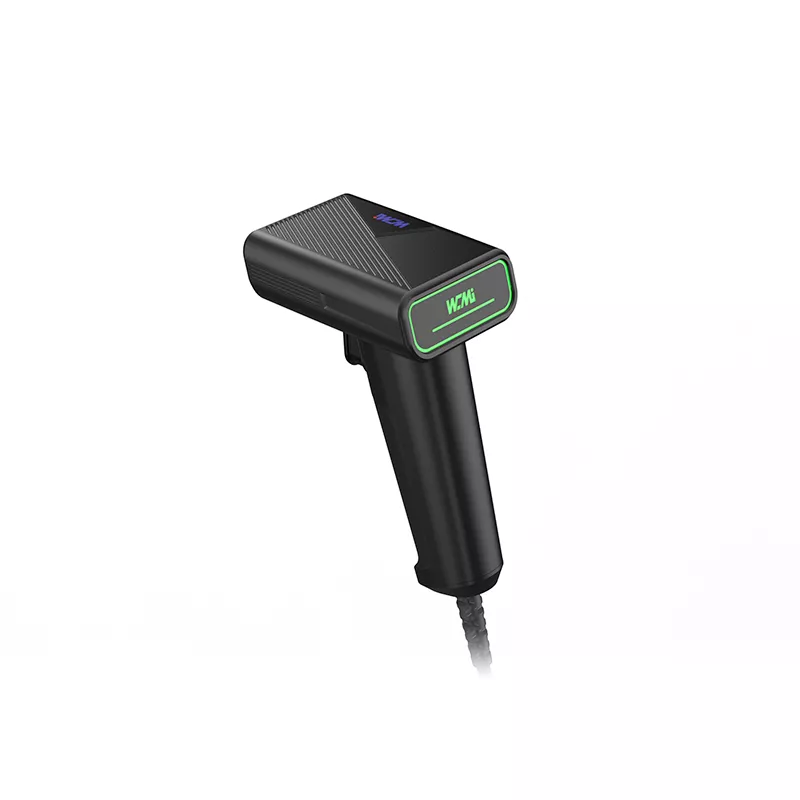

SD5130 1D 2D Passport Wired Handhld Barcode Scanner

  • Advanced image recognition algorithm with 30w pixel camera, easy and high-speed reading of  various barcodes.

  • Lighting can be customized according to requirements.

  • Support scan code buzzer feedback and vibration feedback.

  • Bar code minimum identification density--4mil.

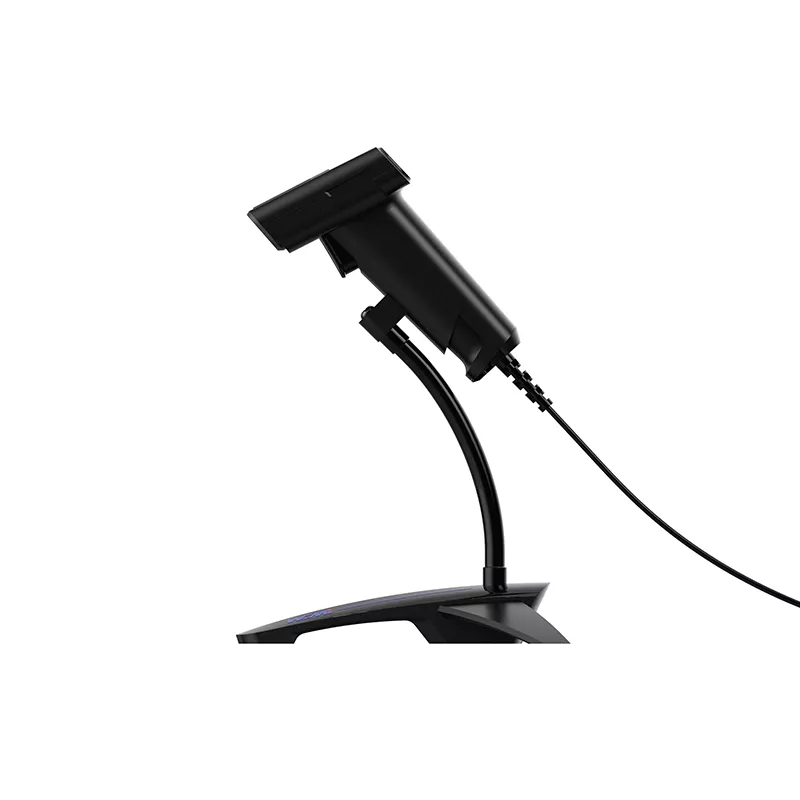

  • The manual mode and inductional mode can be switched automatically with the stand.

  • New generation ergonomic design.

  • Support fuzzy or damaged 1D/2D barcode on paper and 1D/2D barcode on screen.

  • Applicable to restaurants, supermarkets, hotels, governments and other intelligent scenarios.

  • Support Linux, Android, Windows and Mac OS systems.


1D 2D Passport Wired Handheld Barcode Scanner is a powerful and versatile device designed to meet all your passport scanning needs. With its advanced features and competitive price, this Passport Reader is the ultimate solution for various industries, from hotels to retail and beyond.

As a Wired Laser Barcode Scanner, this innovative device ensures high-speed and accurate scanning of 1D and 2D barcodes on passports, IDs, and other documents. With its passport barcode reader capabilities, it swiftly decodes data, making it an ideal choice for immigration points, hotels, or any organization requiring efficient passport scanning.

This Passport Scanner's price is a true bargain, offering top-tier performance without breaking the bank. Whether you need a reliable passport code reader for your hotel's front desk, an Android passport reader for mobile applications, or an iPhone passport scanner for seamless integration, our wired laser barcode scanner covers it all.

Wired Laser Barcode Scanner Technical Parameters:

Scan Code


640 (horizontal) X 480 (vertical) CMOS @ 30fps
Light source
Fill Light: White 6500K LED / Aiming Light: Red LED
Horizontal 32°, Vertical 24°
ReadCode system2D

QR Code、PDF417、DataMatrix (ECC200)、Micro QR 、 Hanxin Code、Micro PDF417、Maxi Code、Aztec、Code 16K


EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、 Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSI-Plessey、Standard 2 of 5、 Plessey、China Post、GS1 Databar (RSS-Expand, RSS-Limited, RSS-14)

Read Depth of fieldCode3940 ~ 105mm (5mil)
EAN1340 ~ 280 mm (13mil)
CODE12845 ~ 370 mm (15mil)
QR20 ~ 210 mm (15mil)
Reading angle
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Reading mode
Continuous mode, Induction mode, Manual mode, Command triggered mode
Reading accuracy
1D ≥ 4mil / 2D ≥10mil
Symbol contrast
Physics ParametersWeight
Appearance size
138.18mm x 101.51mm x 63mm
Line length
1.6 meters
Read tips
LED prompt, Vibration motor, Buzzer
DC+5V ±5%
Operating current
Environmental ParameterOperating temperature
-20 ℃ ~ 60 ℃
Storage temperature
-40 ℃ ~ 70 ℃
Working humidity
5% RH ~ 95% RH (no condensation)

The Passport Barcode Reader Online feature enhances accessibility, allowing you to scan and process passports and IDs without any additional software installation. Simply connect the device to your computer or mobile device, and you're ready to scan with ease.

Designed for convenience and portability, our Mobile Passport Scanner is lightweight and easy to carry around, ensuring you can efficiently scan passports and IDs on the go. Its compatibility with various devices, such as smartphones and tablets, makes it a flexible tool for your business needs.

Size(mm)of Wired Laser Barcode Scanner

Passport Barcode Reader Android

Hotels seeking an efficient and secure Passport Scanning Machine need not look further. Our wired laser barcode scanner ensures a seamless check-in process for your guests, improving customer satisfaction and reducing waiting times.

Whether it's for hotel management, immigration points, or retail purposes, our Passport Scanner for Hotels guarantees reliable and accurate scanning, reducing errors and enhancing your organization's efficiency.

The Passport Reader Scanner is designed with user-friendliness in mind, ensuring easy setup and operation for any user, regardless of their technical expertise. Its ergonomic design ensures comfortable use during extended periods.

Rest assured that our Passport Scanner Device adheres to the highest security standards, safeguarding sensitive data and protecting the privacy of your customers or guests. Get this passport reader price now!

Passport Barcode Reader Android

The Passport Barcode Reader Online feature enhances accessibility, allowing you to scan and process passports and IDs without any additional software installation. Simply connect the wired laser barcode scanner to your computer or mobile device, and you're ready to scan with ease.

Upgrade your organization's scanning capabilities with the Best Passport Scanner on the market. Trust in its ability to streamline processes, boost productivity, and provide a hassle-free experience for both staff and customers.

WCMI Portable Passport Scanner is the perfect solution for any business or organization that requires swift, accurate, and secure passport and ID scanning. Invest in this advanced passport barcode reader android to elevate your operations to new heights and enjoy the convenience of seamless data capture. Experience the future of passport scanning with our state-of-the-art passport barcode reader android today!
