Wired Barcode Scanner

SD5330 1D 2D Wired Handheld Barcode Scanner

  • High cost–performance ratio.

  • Advanced the 4th generation I-SUBPIXEL algorithm, easy and high-speed reading of various barcodes.

  • Multiple Scanning Modes: Manual mode, continuous mode, induction mode, command trigger mode.

  • Barcode minimum precisions--4mil.

  • Support fuzzy or damaged 1D/2D barcode on paper and 1D/2D barcode on screen.

  • Can withstand a drop of 1.2m and work well in a dark environment.

  • Applicable to restaurants, supermarkets, hotels, governments and other intelligent scenarios.

Wired 2d Barcode Scanner


Introducing our cutting-edge retail handheld scanners, the ultimate solution for your retail scanning needs! With this high-performing device in your hands, you can streamline your business operations and elevate customer service to new heights.

Designed with precision and efficiency in mind, our wired 2d barcode scanner boasts top-of-the-line technology that ensures accurate and lightning-fast scanning of both 1D and 2D barcodes. Say goodbye to time-consuming manual data entry and embrace the convenience of this advanced retail handheld scanner.

Retail Handheld Scanners

Equipped with state-of-the-art scanning capabilities, this Wired Handheld Scanner can effortlessly decode barcodes from various surfaces, including paper labels, digital screens, and even curved or irregularly shaped objects. From product labels to customer loyalty cards, this versatile scanner handles it all with ease.

Seamless integration is a breeze with our Wired 1D 2D Barcode Scanner. Simply connect the scanner to your point-of-sale (POS) system or computer using the included high-quality cable, and you're ready to go! No need to worry about charging batteries or dealing with wireless connectivity issues—this reliable retail handheld scanner is always ready to deliver exceptional performance.

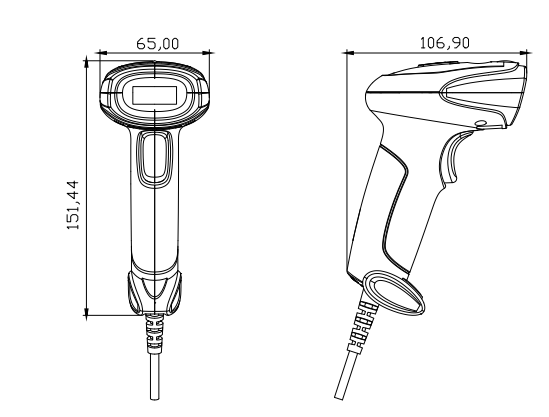

Size(mm)of This Retail Handheld Scanner:

Wired 2d Barcode Scanner

Retail Handheld Scanners Technical Parameters:

Scan Code


640 X 480 CMOS@30fps
Light source
Fill Light: White 6500K LED / Aiming Light: Red LED
Horizontal 37°, Vertical 28°
ReadCode system2D

2D: QR Code、PDF417、DataMatrix (ECC200)、Micro QR 、 Hanxin Code、Micro PDF417、Maxi Code、Aztec、Code 16K


EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSI-Plessey、Standard 2 of 5、

Plessey、China Post、GS1 Databar (RSS-Expand, RSS-Limited, RSS-14)

Read Depth of fieldCode3920~80mm (5mil)
EAN1330~180mm (13mil)
CODE12820~230mm (15mil)
QR10 ~ 160mm (15mil)
Reading angle
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Reading mode
Continuous mode, Induction mode, Manual mode, Command triggered mode
Reading accuracy
1D ≥ 4mil / 2D ≥ 10mil
Symbol contrast
Physics ParametersWeight
Appearance size
Line length
1.6 meters
Read tips
LED prompt, buzzer
DC+5V ±5%
Operating current
Environmental ParameterOperating temperature
-20 ℃ ~ 60 ℃
Storage temperature
-40 ℃ ~ 70 ℃
Working humidity
5% RH ~ 95% RH (no condensation)

Ergonomically designed for comfort and extended use, the Retail Handheld Scanner fits perfectly in your hand, ensuring a fatigue-free scanning experience even during long hours of operation. Its lightweight yet sturdy construction ensures durability and longevity, making it the ideal choice for busy retail environments. Request a quote and place an order now!

Retail Handheld Scanners--SD5321/SD5330/SD5331

          Scan Code PerformanceCPU32bit Security Processor
Light SourceFill Light: Red LEDFill Light: White 6500K LED / Aiming Light: Red LED
Sensor1600640 X 480 CMOS@30fps640 X 480 CMOS@120fps
View AngleHorizontal 42°Horizontal 37°, Vertical 28°
 Decoding Capability
2D: QR Code、PDF417、DataMatrix (ECC200)、Micro QR 、Hanxin Code、Micro PDF417、Maxi Code、Aztec、Code 16K
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、 Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSI-Plessey、Standard 2 of 5、Plessey、China Post、GS1 Databar (RSS-Expand, RSS-Limited, RSS-14)
 Depth of FieldCode39: 50 ~ 90mm(5mil) EAN13: 40 ~ 290mm(13mil) Code128: 30 ~ 410mm(20mil)Code39: 20 ~ 80mm(5mil) EAN13: 30 ~ 180 mm(13mil)CODE128: 20 ~ 230 mm(15mil QR: 10 ~ 160mm(15mil)Code39: 30 ~ 130mm(5mil) EAN13: 30 ~ 350 mm(13mil))CODE128: 30 ~ 450mm(15mil) QR: 20 ~ 180mm(15mil)
Scan AngleRotation: 30°,Pitch: ±60°, Deflection: ±60° Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Precisions1D ≥ 4mil1D ≥ 4mil / 2D ≥ 10mil1D ≥ 3mil / 2D ≥ 7mil
Scan ModeContinuous mode, Induction mode, Manual mode, Command triggered mode
Symbol Contrast≥ 20%
   Physical ParametersWeight< 350g
Dimensions106.9mm * 65.00mm * 151.44mm
Line Length1.6m
InterfaceUSB VCP / USB HID-KBW (Default) / USB HID-POS
Prompt ModeLED prompt, Buzzer
VoltageDC +5V (±5%)
Environmental ParameterShock5~200Hz, 10Grms, 3axes, 1.5Hr
FallDesigned to Withstand 1.2m Drops

Retail Handheld Scanners

Whether you run a small boutique or a large retail chain, our Wired 2D Barcode Scanner is an indispensable tool that enhances efficiency, reduces errors, and improves overall productivity. Boost your operational accuracy and customer satisfaction with this remarkable handheld scanner!

Don't miss out on this opportunity to revolutionize your retail business with the Wired 1D 2D Handheld Barcode Scanner. Upgrade your scanning capabilities today and experience the future of retail efficiency firsthand!


It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service.
