Wireless Barcode Scanner

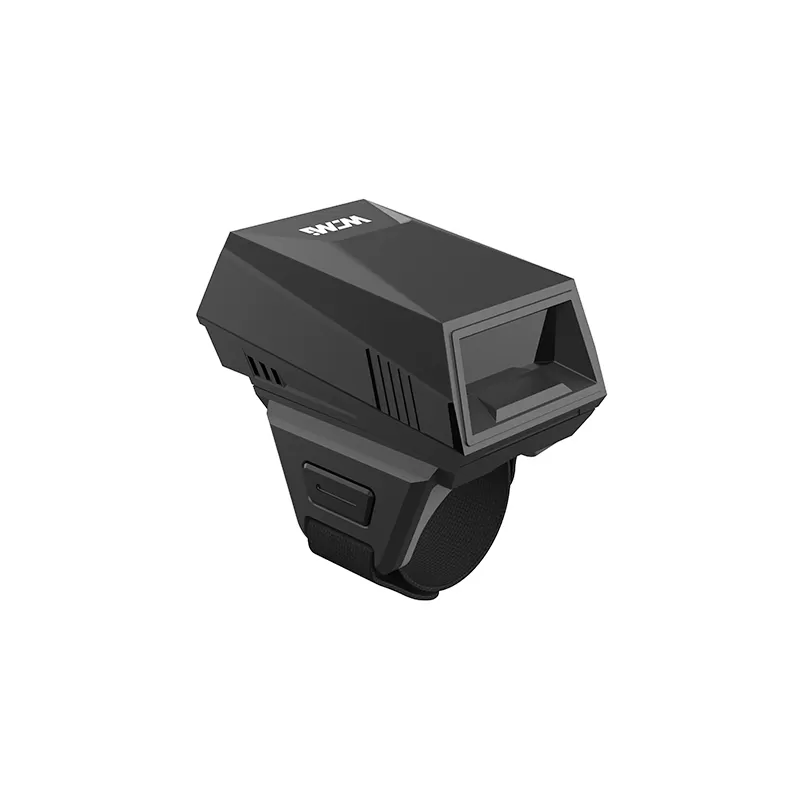

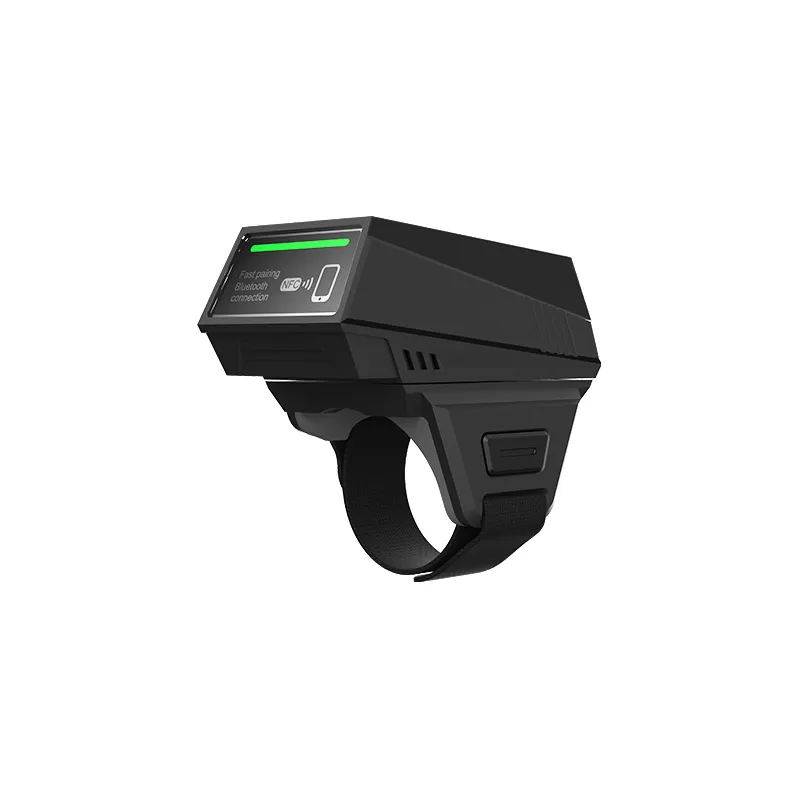

R703 Ring Barcode Scanner

  • Extremely lightweight, it only weighs 30g.

  • Stylish and compact appearance design.

  • Easy to wear, it can rotate 180°, can be worn by left or right hands.

  • Light, buzzer, vibration three feedback prompts.

  • Using the latest 4th generation I-SUBPIXEL algorithm to make decoding faster and more compatible with defaced codes.

  • Using the latest BLE5.0, extreme optimization of power consumption. In the open environment, the communication distance is 80 meters.

  • Support NFC,  can easily connect to Bluetooth with a touch.

  • Continuous operating time >8 hours or 10,000 scans.

  • Handheld Stocktake Scanner Application scenarios: code scanning application scenarios such as supermarket retail, express

  • logistics, warehouse inventory, assembly line, etc.

R703 Ring Barcode Scanner


Are you a reseller looking for the best barcode scanner for resellers to enhance your business operations? Look no further than the Ring Barcode Scanner. With its advanced features and exceptional performance, it is the ultimate solution for streamlining your barcode scanning processes.

The Ring Barcode Scanner combines the convenience of a handheld device with the efficiency of a PDA (Personal Digital Assistant). This Handheld Stocktake Scanner fits comfortably on your finger, allowing you to have hands-free operation while scanning barcodes. Say goodbye to the hassle of holding a traditional scanner and enjoy the freedom of movement.

Equipped with cutting-edge barcode scanning technology, the Ring Barcode Scanner offers lightning-fast and accurate scanning capabilities. Whether you're dealing with standard barcodes or more complex ones like QR codes, the handheld stocktake scanner effortlessly captures and decodes them in an instant. Say goodbye to time-consuming manual data entry and embrace the efficiency of barcode scanning.

Handheld Pda Barcode Scanner Technical Parameters:

Scan Code


640 X 480 CMOS@100fps
Light source
Red light fill LED / Laser LED aiming
Horizontal 32°, Vertical 24°
ReadCode system2D

2D: QRCode、MicroQR、Data Matrix、 PDF417、MicroPDF417、Aztec、Hanxin Code、Code16K、Maxicode Composite Code:GS1 Composite、 Code49


1D: Code128、Code39、EAN13、UPC-A,、ISBN13、EAN8、UPC-E0、UPC-E1、Code93、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、GS1 Databar、GS1 Databar Limited、GS1 Databar Panded、Codabar、MSI Plessey、Code11、Standard 2 of 5、Plessey、China Poat 2 of 5

Read Depth of fieldCode393 ~ 18cm (5mil)
PDF4175 ~ 10cm (5mil)
EAN134 ~ 55cm (20mil)
Code12820 ~ 210 mm (15mil)

Code395 ~ 80cm (20mil)
Reading angle
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Reading accuracy
1D ≥ 4mil / 2D ≥ 7.5mil
Symbol contrast
Wireless PerformanceData transmission mode
Real-time mode/storage mode
Wireless standard
Bluetooth 5.0
Transmission distance (open area)
≥ 80m
storage capacity
Article 20000 (13-digit barcode)
Battery capacity
Charging time
Continuous working time
≥12 hours (6 seconds/time)
Physics ParametersWeight
Appearance size
48.9mm * 29.6mm * 38.8mm
Magnet USB
Read tips
LED prompt, Vibration motor, Buzzer
Operating: 200mA (Bluetooth connection status) / Sleeping: 20uA

Best Barcode Scanner for Resellers

Wavecreating Micro Intelligent is a reseller, you understand the importance of versatility and compatibility. The Ring Barcode Scanner supports a wide range of barcode symbologies, ensuring compatibility with various industries and applications. From retail and logistics to healthcare and manufacturing, handheld stocktake scanner caters to the diverse needs of your customers.

One of the standout features of the Ring Barcode Scanner is its robust connectivity options. With Bluetooth technology, handheld pda barcode scanner seamlessly connects to smartphones, tablets, and other devices, enabling real-time data transfer. This connectivity ensures that you stay connected and updated throughout your business operations.

In addition to its exceptional performance, the Ring Barcode Scanner boasts a durable and ergonomic design. Handheld Pda Barcode Scanner is built to withstand the rigors of daily use, providing reliability even in demanding environments. The lightweight and ergonomic construction ensures comfort during prolonged scanning sessions.

Handheld Pda Barcode Scanner

WCMI is a reseller, you need the best barcode scanner for resellers that not only meets your operational requirements but also offers a competitive edge. The Ring Barcode Scanner delivers on both fronts, providing an unmatched combination of functionality, convenience, and performance.

Don't miss out on the opportunity to elevate your business with the best barcode scanner for resellers. Choose the Ring Barcode Scanner and experience seamless barcode scanning that enhances productivity, efficiency, and customer satisfaction.

Contact us today to learn more about the handheld pda barcode scanner and how handheld stocktake scanner can revolutionize your reselling business.


It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service.
