Omni-directional Barcode Scanner

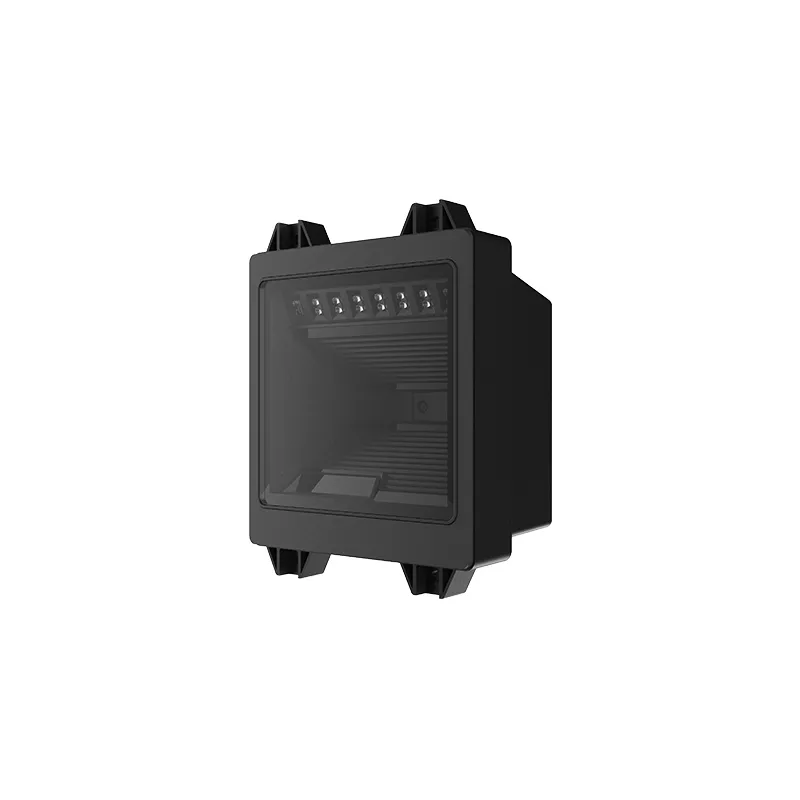

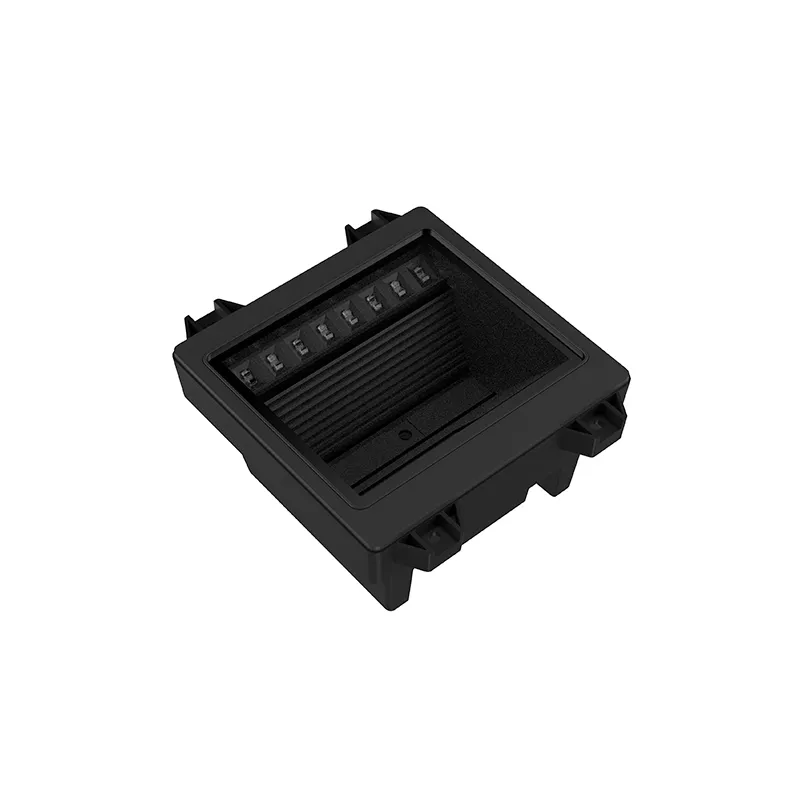

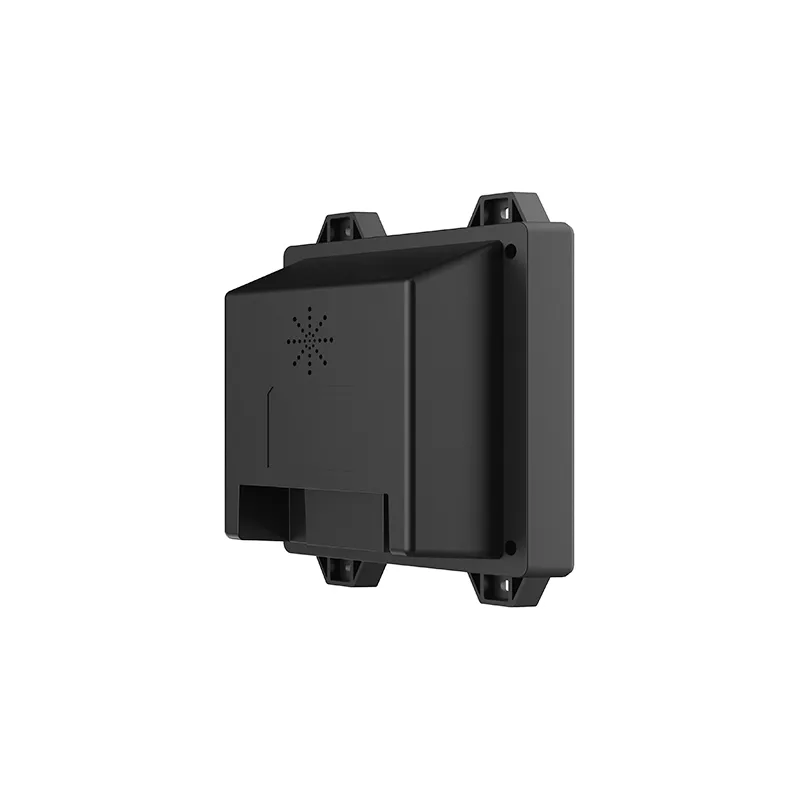

SD5737 Embedded Omni-directional Barcode Scanner

  • Strong tolerance of motion up to 4.5m/s.

  • Large scan window design 30w pixel, high-performance customized CPU.

  • The 4th generation I-SUBPIXEL algorithm.

  • Barcode minimum size -4mil.

  • Active induction scanning mode, seamless switching of scanning.

  • Support fuzzy or damaged 1D/2D barcode on paper and 1D/2D barcode on screen.

  • Suitable for such as supermarkets, convenience stores, gas stations and other self-service checkout scenarios.

DESCRIPTION

Unlock a new era in data capture efficiency with the Embedded Omni-Directional Barcode Scanner – your ultimate PC Barcode Reader solution. Manufactured by the trusted leader, Tianjin Wavecreating Micro Intelligent Technology Co., Ltd., this versatile embedded barcode scanner sets the industry standard in omnidirectional scanning technology.

Omni-directional Scanner

Scan code

Performance

Sensor
640 (horizontal) X 480 (vertical) CMOS @ 100fps
Light source
Red LED
Perspective
Horizontal 44 °, vertical 34 °
ReadCode system1D

QR 、PDF417、DataMatrix (ECC200)、Aztec、Hanxin Code、Maxicode、Micro QR、Micro PDF417、Code49

2D

EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar 、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSIPlessey 、RSS-14、RSS-Expand、RSS-Limited、Standard 2 of 5、Code 16K、Plessey、ChinaPost

Read Depth of fieldCode395 ~ 60mm (5mil)
EAN130 ~ 160 mm (13mil)
CODE1280 ~ 240 mm (15mil)
QR0 ~ 100 mm (15mil)
Motion ToleranceEAN13 Paper Code≥4.5m/s
Reading angle
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Reading mode
Induction mode
Reading accuracy
1D ≥ 5mil / 2D ≥ 10mil
Symbol contrast
≥15%
Physics ParametersWeight
<400g

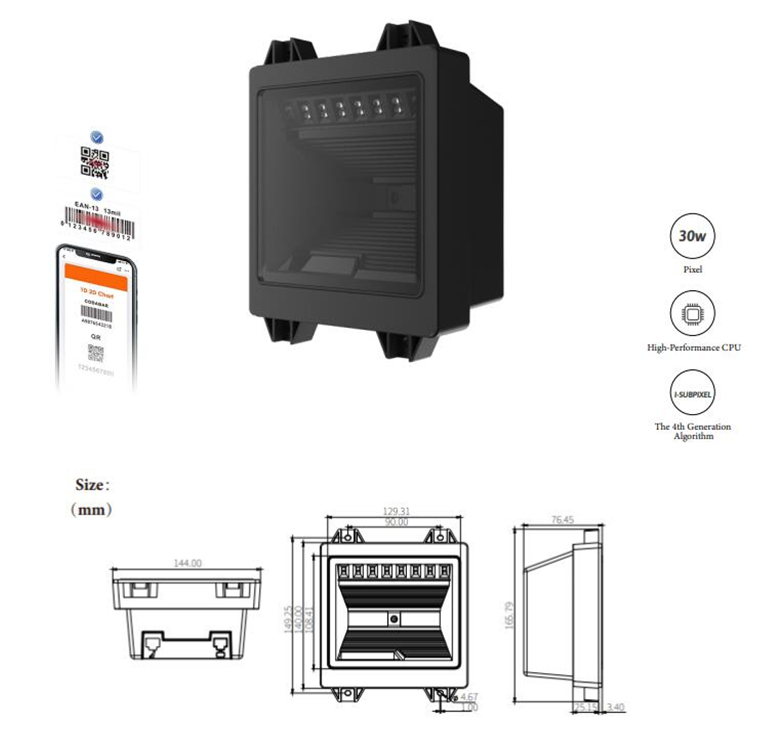

Appearance size
165.04mm*144mm*76.45mm
Line length
1.5 meters
Interface
USB
Read tips
Buzzer
Voltage
DC+5V ±5%
Operating current
500mA

Environmental

Parameters

Operating temperature
-20 ℃ ~ 60 ℃
Storage temperature
-40 ℃ ~ 70 ℃
Working humidity
5% RH ~ 95% RH (no condensation)


Key Features and Benefits:


◆ Omnidirectional Scanning: Experience lightning-fast and effortless data capture from any angle with our embedded omni-directional scanner. No more precise alignment is needed – it reads barcodes in any orientation, enhancing efficiency in industrial, retail, and inventory tracking applications.

◆ Industrial 2D Barcode Scanner: Designed for the toughest environments, this embedded barcode scanner effortlessly decodes both 1D and 2D barcodes, making it ideal for industrial applications where rapid and accurate data capture is crucial.

◆ Retail-Ready Performance: Elevate your retail operations with quick barcode scanning. Enhance customer service, streamline checkout processes, and improve inventory management with the speed and precision of our omni-directional scanner.

◆ Seamless Integration: As a trusted PC Barcode Reader manufacturer, we prioritize compatibility. Our embedded scanner is designed for easy integration into your existing systems, enabling a seamless experience for both operators and customers.

◆ Custom Solutions: Leverage our OEM/ODM capabilities to create custom barcode scanning devices tailored to your specific requirements. We offer flexibility in design and functionality to meet your unique needs.

◆ Barcode Inventory Tracking: Take control of your inventory with our embedded barcode scanner. Implement a barcode inventory tracking system that provides real-time data, reducing errors and optimizing stock management.

◆ Quality Assurance: Our embedded omni-directional barcode scanner undergoes rigorous quality testing to ensure consistent and reliable performance, even in demanding environments.


Embedded Barcode Scanner

Applications:


◆ Retail Stores: Revolutionize your retail environment with quick barcode scanning and inventory management.

◆ Industrial Operations: Improve workflow efficiency in industrial settings with industrial 2D barcode scanning capabilities.

◆ Inventory Control: Implement a barcode inventory tracking system to track and manage inventory accurately.

◆ Custom Solutions: Partner with us for OEM/ODM projects to create custom barcode scanner devices for your specific needs.


Transform your operations with the Embedded Omni-Directional Barcode Scanner from Wavecreating. Experience the precision and versatility of our quick barcode scanner, designed to streamline processes, enhance customer experiences, and optimize inventory management. Contact us today to explore custom solutions that cater to your unique requirements. Elevate your data capture capabilities with the industry leader in barcode scanning technology.


Omnidirectional Barcode Scanner
