What Makes a Barcode Scanner Work?

Jul. 10, 2023

In this article, we will delve into the fascinating world of barcode scanners, understanding their inner workings, and how they play a vital role in the modern business landscape. From retail to logistics, healthcare to manufacturing, barcode scanners have become an indispensable tool, streamlining processes and enhancing efficiency across industries. As experts in the field, we aim to provide you with a comprehensive guide to help you understand how barcode scanners work and why they are crucial for your business operations.



1. Understanding the Technology Behind Barcode Scanners

Barcode scanners may seem like a simple handheld device, but beneath their sleek exterior lies sophisticated technology that enables them to read and decipher barcodes with remarkable accuracy. At the core of every barcode scanner is an image sensor or a laser scanner, which acts as the primary mechanism to capture the barcode data.



1.1 Image Sensor-based Barcode Scanners

Image sensor-based barcode scanners use a camera or a sensor to capture an image of the barcode. The scanner then analyzes the pattern of black and white lines, converting them into digital information. This data is further processed by the scanner's internal processor to reveal the encoded information, which could be a product number, a serial number, or any other relevant data.



Image sensor-based scanners are widely used in various industries due to their versatility and ability to read barcodes from various surfaces, including paper, labels, and even electronic screens. They are particularly popular in retail environments, where quick and accurate scanning is crucial to maintaining a seamless checkout process.



1.2 Laser-based Barcode Scanners

Laser barcode scanners use a laser beam to read the barcode. The beam scans across the barcode, and as it reflects off the contrasting surfaces, the scanner's photodiode detects the changes in light intensity. This information is then converted into digital data, allowing the scanner to interpret the barcode's contents.



Laser scanners are known for their precision and ability to read barcodes from a distance, making them ideal for applications where scanning at a close range might be challenging. They are commonly used in warehouses and distribution centers, where inventory management relies heavily on efficient barcode scanning.

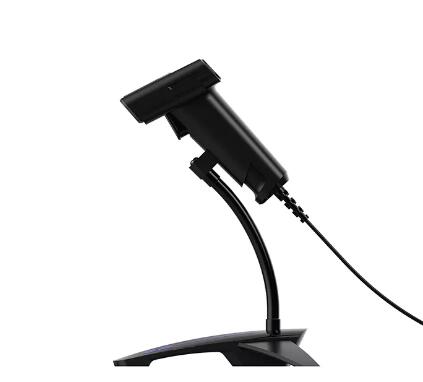

Passport Wired Handhld Barcode Scanner



2. Types of Barcodes

Before delving deeper into the working of barcode scanners, it's essential to understand the different types of barcodes commonly used today. Each type of barcode has its own specific format, encoding method, and application.



2.1 UPC (Universal Product Code)

UPC barcodes are widely recognized in the retail industry. They consist of black and white bars and are typically found on product packaging. UPC barcodes encode crucial information, such as the product's manufacturer and unique product identification number, enabling quick and accurate product lookups at the point of sale.



2.2 QR (Quick Response) Codes

QR codes have gained immense popularity in recent years due to their ability to store large amounts of data, including URLs, contact information, and product details. Unlike traditional barcodes, QR codes are two-dimensional, resembling a square pattern of black modules arranged on a white background. They are widely used in marketing and advertising campaigns to provide customers with easy access to digital content.



2.3 Code 39

Code 39 barcodes are alphanumeric and are often used in industrial applications. They can encode uppercase letters, numbers, and a few special characters, making them suitable for labeling components and tracking inventory in manufacturing and logistics operations.



3. How Barcode Scanners Work: The Process

Now that we have a basic understanding of the technology and types of barcodes, let's dive into the step-by-step process of how barcode scanners work.



3.1 Scanning the Barcode

When a barcode scanner is directed towards a barcode, it emits either a laser or activates the image sensor to capture the barcode's image. As the scanner moves across the barcode or the barcode moves in front of the scanner, it reads the pattern of black and white bars.



3.2 Converting Light into Electrical Signal

For laser scanners, the photodiode within the scanner detects changes in light intensity as the laser beam reflects off the barcode's contrasting bars. In the case of image sensor-based scanners, the camera captures the image of the barcode, and the sensor converts the light information into an electrical signal.



3.3 Decoding the Barcode

Once the electrical signal is generated, the scanner's internal processor takes over. It analyzes the signal, decoding the pattern of bars into a binary code. This binary code represents the encoded information stored within the barcode.



3.4 Retrieving the Encoded Information

The decoded binary code is then matched with the appropriate database, where the corresponding information related to the barcode is stored. This database could be a local inventory system, a cloud-based server, or any other centralized data repository.



3.5 Displaying the Results

Finally, the barcode scanner presents the retrieved information on its display or sends it to a connected computer system, cash register, or mobile device, depending on the application.



4. Advantages of Using Barcode Scanners

4.1 Enhanced Efficiency and Accuracy

Barcode scanners significantly improve operational efficiency by reducing manual data entry errors. With barcode technology, businesses can expedite various processes, such as inventory management, order tracking, and asset tracking, leading to enhanced accuracy and productivity.



4.2 Time-Saving and Cost-Effective

By automating data capture and processing, barcode scanners save valuable time for employees and businesses. This automation also translates into cost savings in the long run, as it minimizes labor-intensive tasks and reduces the likelihood of errors.



4.3 Streamlined Inventory Management

Barcode scanners revolutionize inventory management by providing real-time data on stock levels and movement. This visibility enables businesses to optimize inventory levels, prevent stockouts, and improve supply chain management.



5. Future Innovations in Barcode Scanning

As technology continues to advance, the future of barcode scanning looks promising. Innovations such as 2D imaging, artificial intelligence integration, and augmented reality-based scanning hold the potential to take barcode scanning to new heights.



Conclusion

In conclusion, barcode scanners play an indispensable role in today's business landscape, empowering industries with efficient data capture and management. Understanding the technology behind barcode scanners and the process of how they work sheds light on their remarkable capabilities.
