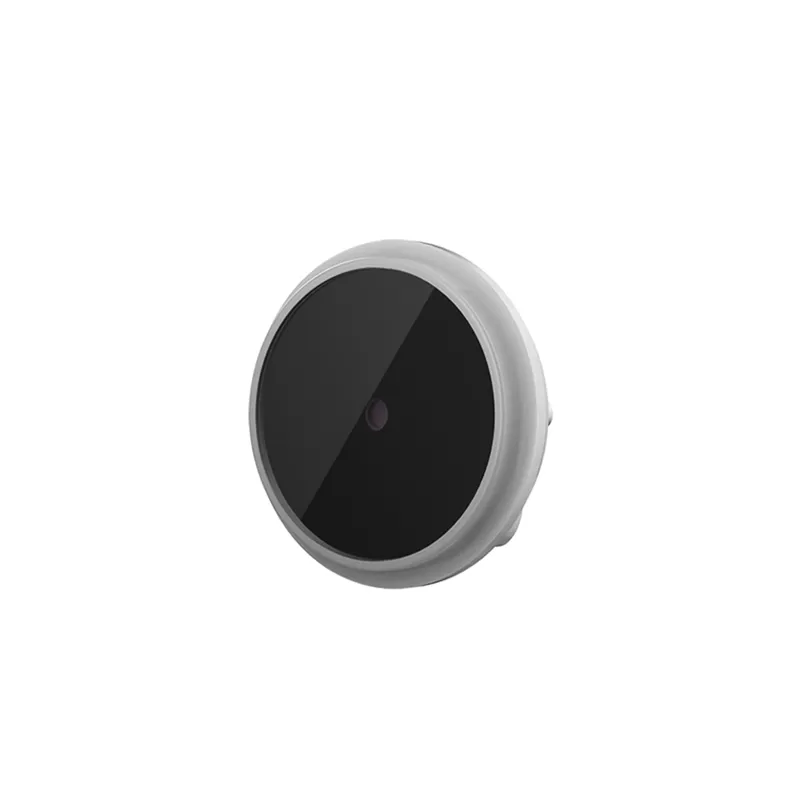

EM1830 1D 2D Elevator Control Engine

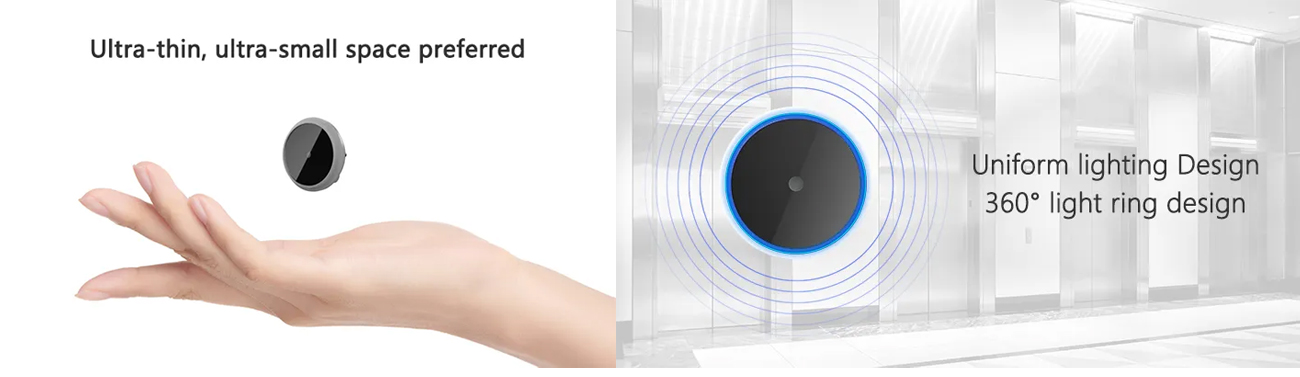

  • Uniform lighting design, 360° light ring design.

  • Ultra-thin, ultra-small space preferred.

  • The 4th Generation I-SUBPIXEL algorithm, easily and quickly scan various barcodes.

  • White LED illumination easily read paper barcodes.

  • Applicable to all kinds of elevator controller products.

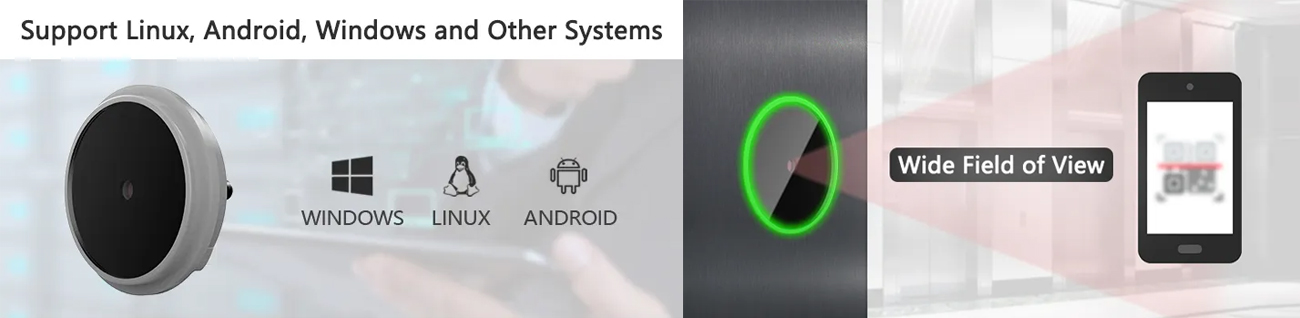

  • Support Linux, Android, Windows and other systems.

EM1830 1D 2D Elevator Control Engine

DESCRIPTION


ModelEM1830
Scan Code PerformanceImage sensor640 X 480 CMOS@30fps
Visual angleHorizontal 70°, Vertical 55°
Reading angleRotation: 360°, Pitch: ±60°, Deflection: ±50°
Code reading system

Default Open: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar 、QR Code、PDF417、DataMatrix

Default Close: Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、 MSIPlessey 、RSS-14、RSS-Expand、RSS-Limited

Classic depth of fieldEAN-13: 30 ~ 110mm(13mil)

Code128: 30 ~ 120mm(15mil)

Mobile ride code: 70 ~ 170mm  (6 "screen phone)

Wechat payment QR code: 40 ~ 280mm  (6 "screen phone)

Reading accuracy1D ≥ 5mil / 2D ≥ 10mil
Symbolic contrast≥ 25%
Recognition patternInduction mode, continuous mode
Physics ParameterScan code feedbackIndication, serial output
operating voltageDC +3.3V (±10%)
operational current<120mA
weight3g

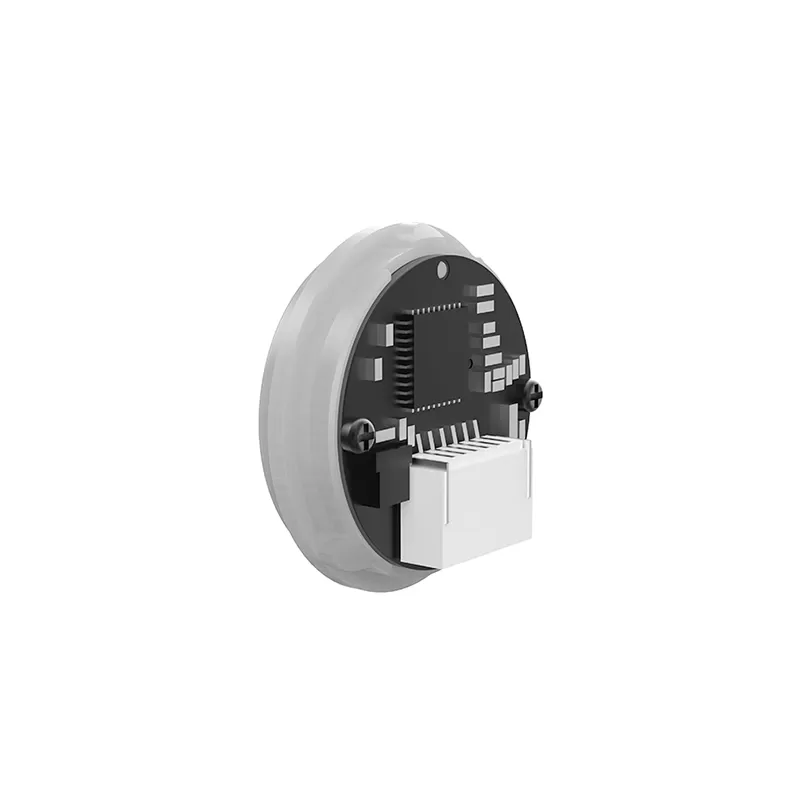

Appearance sizeExternal diameter 21mm±0.1mm, height 8.7mm±0.2mm (Including connector)
communication portTTL
Environmental ParameterWorking temperature-30℃ ~ 70℃
Working humidity5%RH~95%RH (non-condensation)
Storage temperature-40℃ ~ 80℃
shake5~200Hz,10Grms,3axes,1.5Hr
