Desktop Barcode Scanner

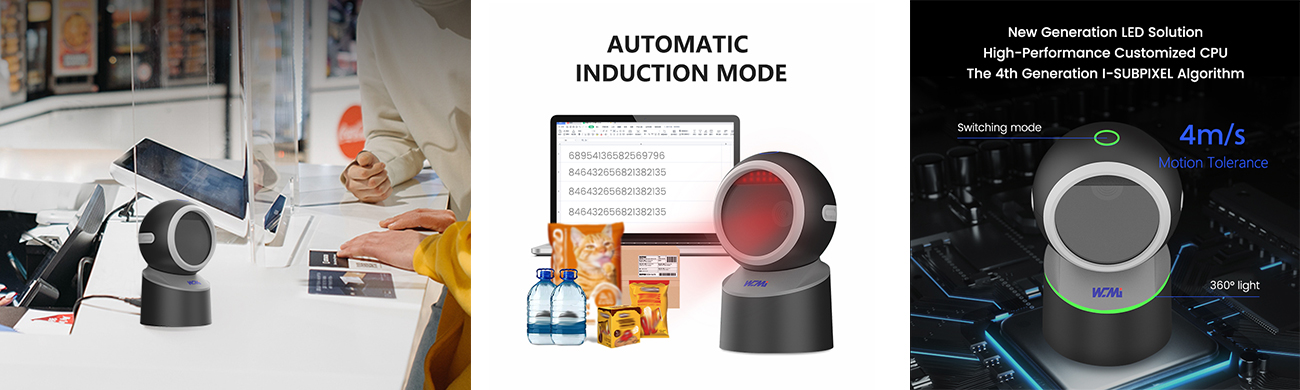

SD5637 Desktop Wired Barcode Scanner

  • New generation LED solution.

  • High-performance customized CPU.

  • The 4th generation I-SUBPIXEL algorithm.

  • Motion tolerance up to 4.5m/s.

  • Wide range of depth of field, 0 distance scan code also be easily identified.

  • Support fuzzy/damaged/reversed/color/print proble/incomplete 1D/2D barcode.

  • Applicable to restaurant, supermarket, hotel, governments and other intelligent scenarios.

  • Support Linux, Android, Windows and Mac OS systems.

SD5637 Desktop Wired Barcode Scanner


DESCRIPTION










Scan Code PerformanceSensor
640 X 480 CMOS@100fps
Light source
Red LED
Perspective
Horizontal: 44°, Vertical: 34°
ReadCode system2DQR Code、PDF417、DataMatrix  (ECC200)、Micro QR 、Hanxin Code、 Micro PDF417、Maxi Code、Aztec、 Code 16K、Code49
1DEAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar 、Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey 、RSS-14、RSS-Expand、RSS-Limited、Standard 2 of 5、Plessey、ChinaPost
Read Depth of fieldCode390 ~ 70mm (5mil)
EAN130 ~ 180mm (13mil)
CODE1280 ~ 230mm (15mil)
QR CODE0 ~ 140mm (20mil)
Motion toleranceEAN13 Paper Code≥4.5m/s
Reading angle
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Reading mode
Induction mode
Reading accuracy
1D ≥ 4.5mil / 2D ≥ 10mil
Symbol contrast
≥15%
Physics ParametersWeight
<350g
Appearance size
150.32mm x 95.6mm x 88.88mm
Line length
1.5 meters
Interface
USB VCP / USB HID-KBW (Default) / USB HID-POS
Read tips
LED prompt, Buzzer
Voltage
DC+5V ±5%
Operating current
400mA
Environment ParametersOperating temperature
-20 ℃ ~ 60 ℃
Storage temperature
-40 ℃ ~ 70 ℃
Working humidity
5% RH ~ 95% RH (no condensation)


Desktop Barcode Scanner SD5637
