Barcode Scanner Module

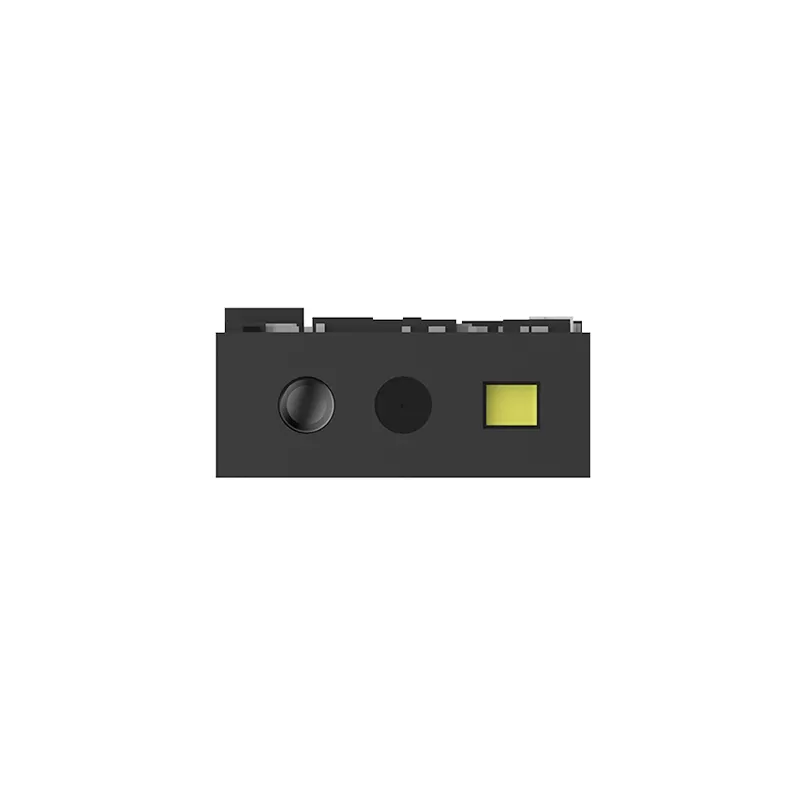

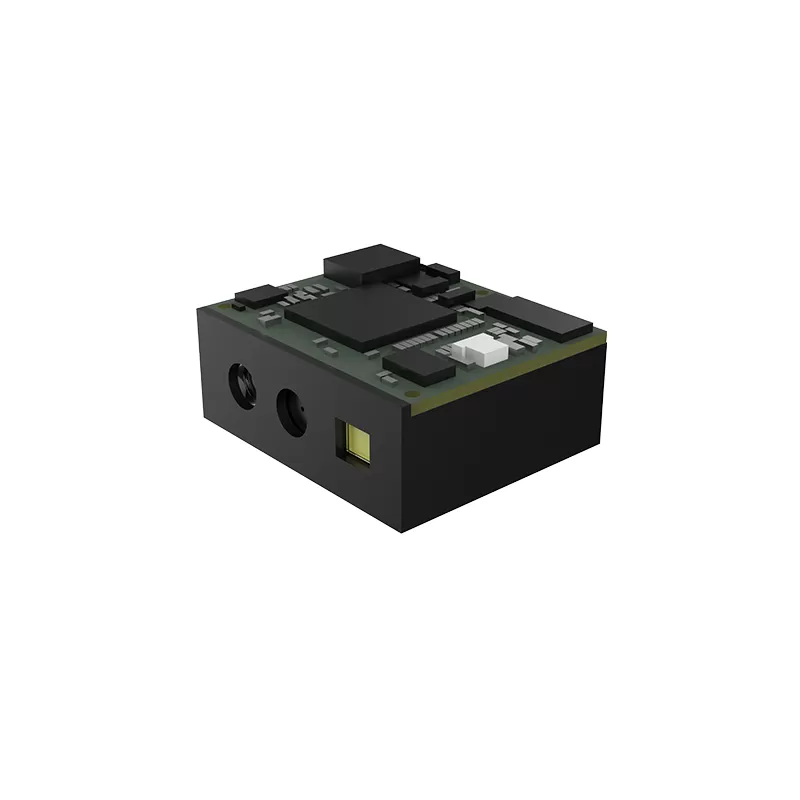

SE4430 1D 2D Barcode Scanner Engine

  • Support OCR identification.

  • Support USB VCP USB HID-KBW USB HID-POS,TTL communication.

  • Suitable for Many kinds of handheld barcode scanner and scenarios of supermarkets.

  • Excellent decoding performance, can adapt to a variety of harsh complex environmentProvides abundant external interfaces.

  • Buzzer feedback and vibration feedback are supported.

SE4430 1D 2D Barcode Scanner Engine

DESCRIPTION

WCMI cutting-edge 1D/2D Barcode Scanner Engine, a powerful solution designed to deliver exceptional scanning performance for a wide range of applications. Built with advanced technology and precision engineering, our barcode scanner engine sets a new standard in barcode scanning efficiency, accuracy, and versatility.


1D 2D Barcode Scanner Engine Technical Parameter


Scaning CodeImage Sensor640 X 480 CMOS@100fps
Light SourceRed light fill LED / Laser LED aiming
Horizontal View AngleHorizontal 32°, Vertical 24°
  Symbologies

2D: QRCode(Mode1,Mode2)、MicroQR、Data Matrix、PDF417、MicroPDF417、 Aztec、HanXin、Maxicode、

Grid Matrix Code、Code 16K、Code49、GS1 Composite

1D: Code128、Code39、Code93、EAN13、EAN8、UPC_E(E0,E1)、ISBN13、 Interleaved 2 of 5、Industrial 2 of 5、

Matrix 2 of 5、RSS14(GS1 Databar)、 RSS Limited(GS1 Databar Limited)、RSS Expanded(GS1 Databar Expanded)、

RSS14 Stack(GS1 Databar Stack)、RSS Expanded(GS1 Databar Expanded Stack)、 Codebar、MSI Plessey、

Code 11、Standard 2 of 5、 Plessey、ChinaPost 2 of 5

 Depth of Field

Code39: 30 ~ 180mm(5mil)

PDF417: 50 ~ 100mm(5mil)

EAN13: 40 ~ 450mm(13mil)

Code128: 40 ~ 550mm(20mil)

Code39: 50 ~ 800mm(20mil)

Scan AngleRotation: 360°, Pitch: ±60°, Deflection: ±60°
 Resolution1D≥3mil
2D≥ 7.5mil
Symbol Contrast≥15%
Physical parameterWeight<5g

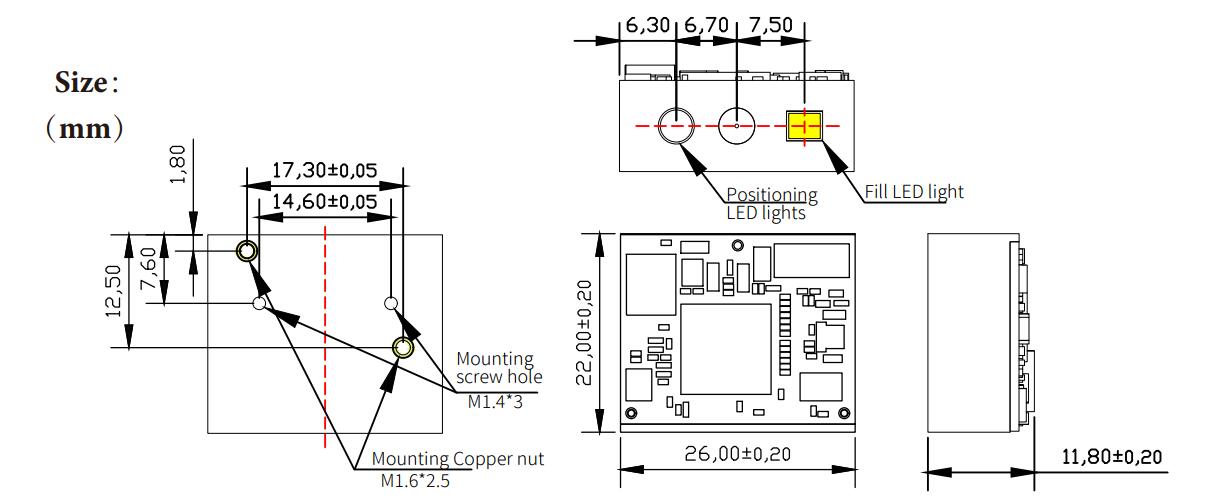

Dimensions26mmL * 22mmW * 11.4mmH
InterfaceUSB VCP / USB HID-KBW (Default) / USB HID-POS / TTL
VoltageDC +3.3V±5%
Current@DC 3.3VTBD

Environmental

parameters

Operating Temperature-20℃ ~ 60℃
Storage Temperature-40℃ ~ 70℃
Working  Humidity5% RH~95% RH (Non-condensing)


1D 2D Barcode Scanner Engine


Key Features and Benefits:


○High-Speed Scanning: Our 1D/2D Barcode Scanner Engine employs advanced scanning algorithms and superior image processing capabilities to ensure rapid and accurate barcode decoding. It scans barcodes with lightning speed, optimizing workflow productivity.


○Versatile Barcode Compatibility: Equipped to decode both 1D and 2D barcodes, our scanner engine supports various barcode symbologies, including QR codes, Data Matrix, UPC, EAN, Code 128, and more. It provides a comprehensive scanning solution for diverse industries and applications.


○Superior Scan Range: Our barcode scanner engine offers an impressive scan range, allowing for efficient scanning of barcodes from close proximity to a considerable distance. It ensures flexibility and convenience, even in challenging scanning environments.


○Adaptive Scanning Technology: Designed to adapt to various scanning conditions, our barcode scanner engine incorporates intelligent scanning technology that compensates for low-quality or damaged barcodes. It ensures reliable scanning performance, minimizing errors and enhancing user experience.


○Easy Integration: Our 1D/2D Barcode Scanner Engine is designed for seamless integration into a wide range of devices and systems. With its compact size and flexible interface options, it can be easily integrated into handheld scanners, kiosks, mobile computers, point-of-sale systems, and more.


○Durable and Reliable: Built to withstand rigorous use, our scanner engine is constructed with high-quality components and rugged housing. It is engineered for durability, ensuring consistent performance in demanding environments.


○User-Friendly Interface: Our barcode scanner engine offers a user-friendly interface, making it easy to implement and operate. Its intuitive design allows for hassle-free integration and quick deployment in various scanning applications.


1D 2D Barcode Scanner Engine


Applications:


Our 1D/2D Barcode Scanner Engine finds wide application across industries such as retail, healthcare, logistics, manufacturing, transportation, and more. It is well-suited for inventory management, product tracking, asset management, ticketing, mobile payment, and countless other barcode-related applications. Click For More.


Unlock the full potential of barcode scanning with our advanced 1D/2D Barcode Scanner Engine. Experience unparalleled scanning performance, seamless integration, and superior versatility. Enhance your operations, streamline workflows, and elevate customer satisfaction with our state-of-the-art scanner engine.


Why Choose Wavecreating Micro Intelligent:


Company Advantages:


Tianjin Wavecreating Micro Intelligent Technology Co., Ltd. has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 master's, and 2 doctors. Currently. It has obtained 7 invention patents, 4 utility model patents and 10 appearance patents.


Wavecreating Micro Intelligent has passed ISO9001 and ISO14001 certifications, all of the products can meet RoSH, REACH, CE, and FCC certification requirements. It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service.


Product advantages:


Good quality, high performance, high-cost performance, with chip research and development technology, complete quality assurance service, and after-sales protection


Service advantages:


We provide two years of after-sales service, have a perfect 24-hour customer response mechanism, and provide you with first-class pre-sales and after-sales services including.


Contact us today to learn more about our 1D/2D Barcode Scanner Engine and explore how it can revolutionize your barcode scanning needs. Trust in our expertise, reliability, and commitment to delivering top-notch scanning solutions. Embrace the power of efficient and accurate barcode scanning with our innovative scanner engine.
