Barcode Scanner Module

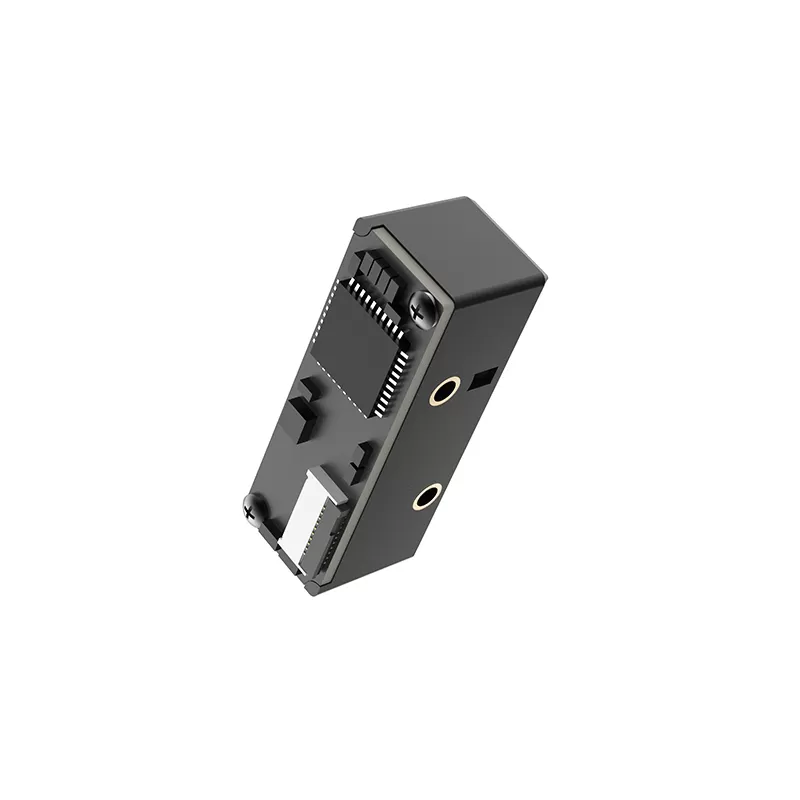

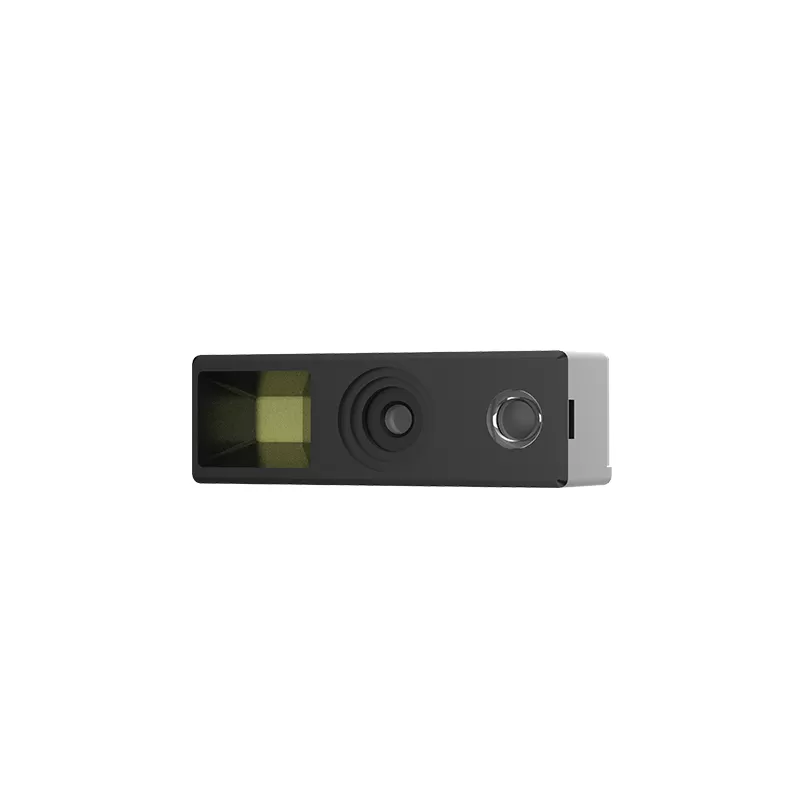

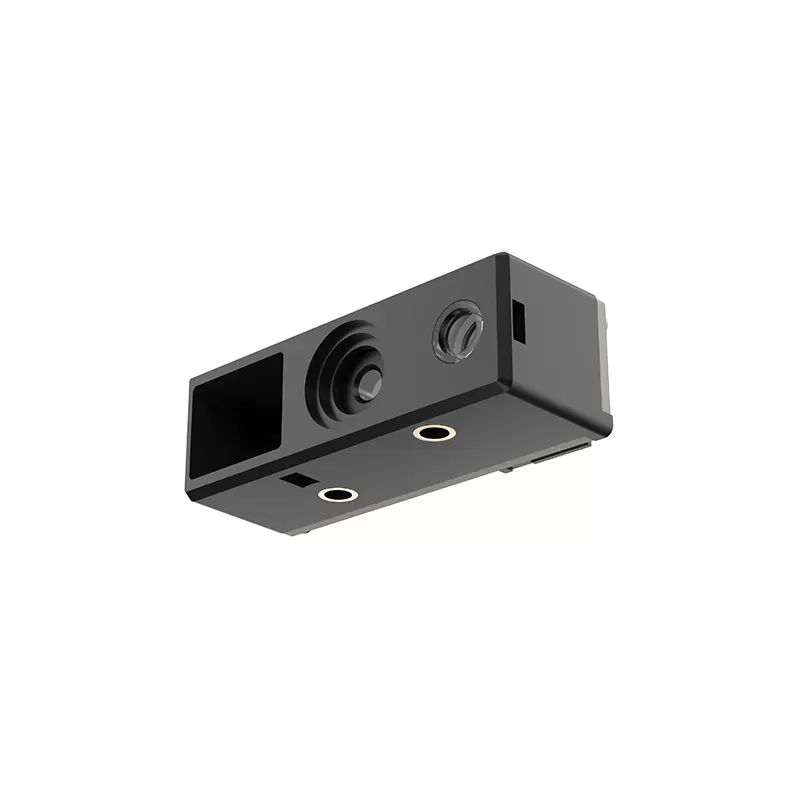

SE4131 1D 2D Barcode Scanning Engine

  • Mini size, high integration, excellent performance, flexibility and convenience.

  • Extremely smallest and lightweight easy to fit into scanning products.

  • The 4th Generation I-SUBPIXEL algorithm.

  • Snappy on-screen barcode capture, either in high or low brightness screen.

  • Smoothly decode damaged, distorted, dirty, fuzzy, colorful, reflective, wrinkled, incomplete, folded barcode.

  • Suitable for such as tablet phablet, counting machine, data collector, PDA, ring scanner, handheld scanner and so on.

SE4131 1D 2D Barcode Scanning Engine

DESCRIPTION

Scaning CodeImage Sensor640 X 480 CMOS@30fps
Light SourceFill Light: White 6500K LED / Aiming Light: Red LED
Horizontal View AngleHorizontal 37°, Vertical 28°
Symbologies2D:QR 、PDF417、DataMatrix (ECC200)、Aztec、Hanxin Code、Maxicode、Micro QR、Micro PDF417、Code16K

1D:EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2of 5、

Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI- Plessey、Standard 2 of 5、Plessey、China Post、

GS1 Databar (RSS-Expand, RSS-Limited, RSS-14)

Depth of FieldCode39: 50 ~ 90mm(5mil)
EAN13: 40 ~ 210 mm(13mil)
Code128: 45 ~ 250 mm(15mil)
QR: 40 ~ 180mm(15mil)
Scan AngleRotation: 360°, Pitch: ±60°, Deflection: ±60°
Resolution1D≥4mil
2D≥10mil
Symbol Contrast≥15%
Physical parameterWeight< 5g
Dimensions21.81mmL * 7.2mmW * 10mmH
InterfaceUSB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232
VoltageDC +3.3V (±5%)
CurrentWorking:170mA
Sleeping:800uA


Barcode Scanner Module SE4131
