Barcode Access Control

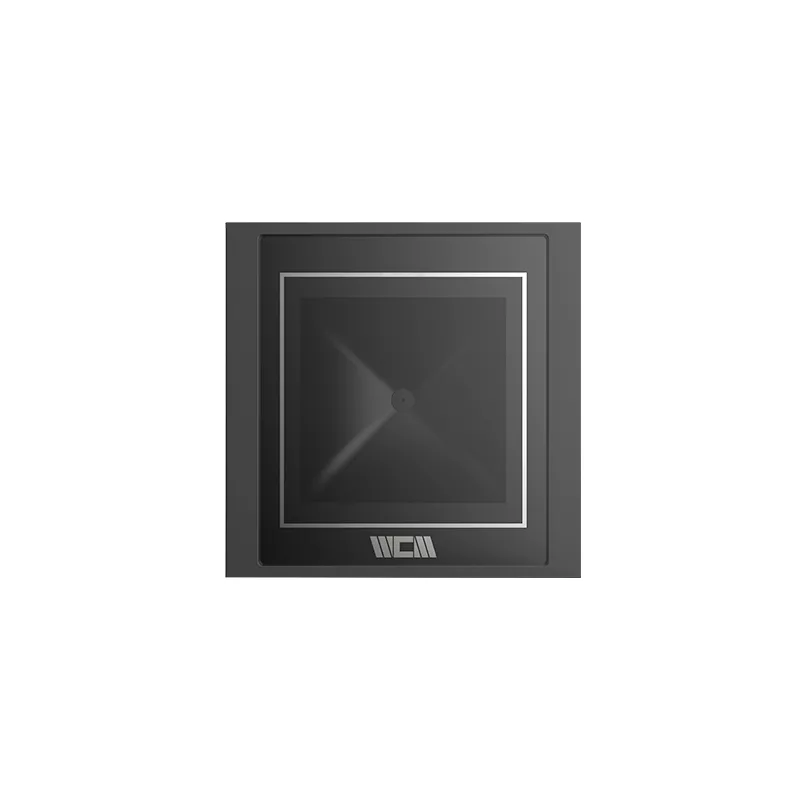

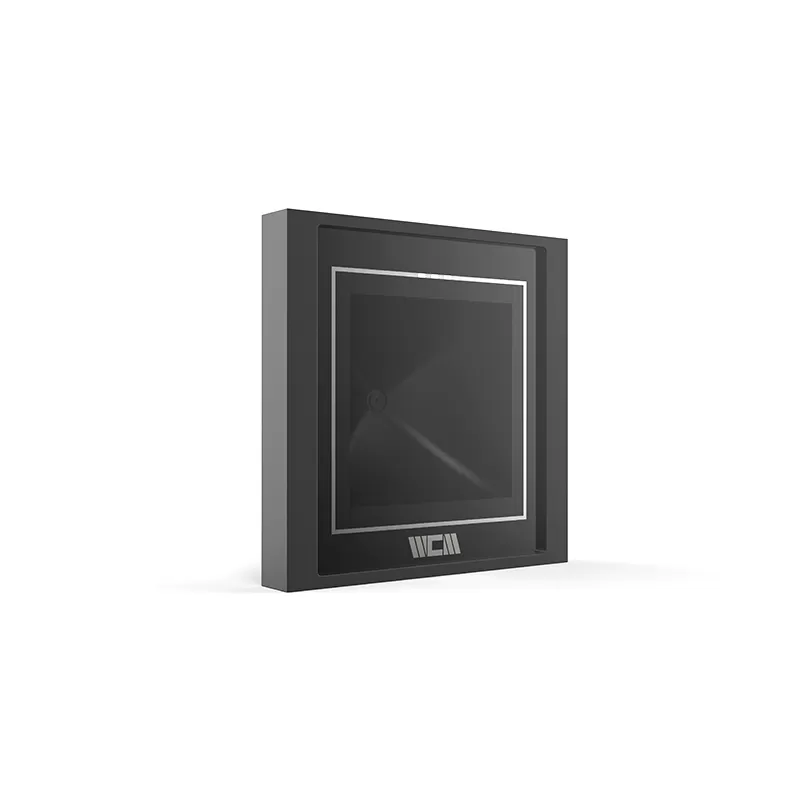

AC8030 Barcode Access Control Reader

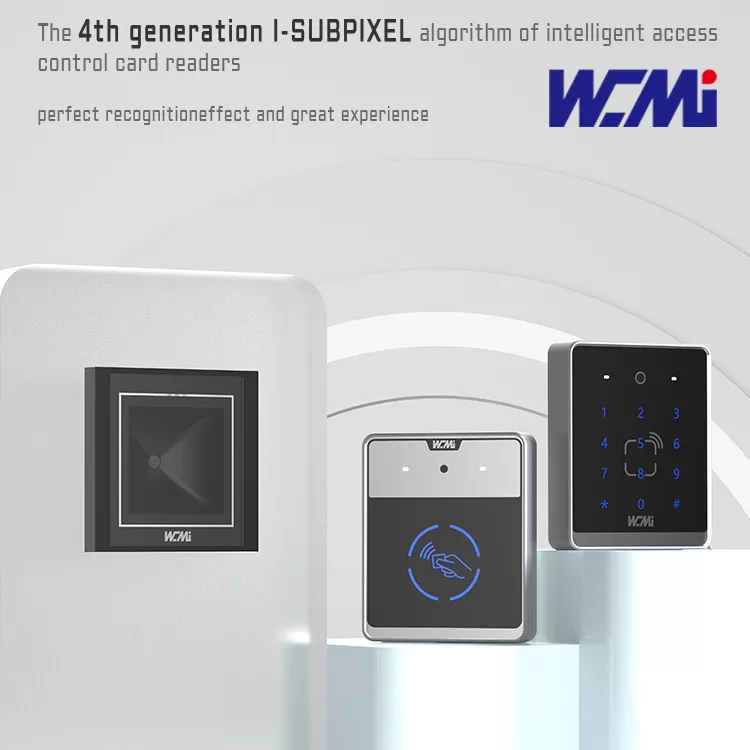

  • The 4th generation I-SUBPIXEL algorithm of intelligent access control card readers.

  • Flexible, optional relay.

  • Support non-contact ic cards, type A/B, and M1 cards.

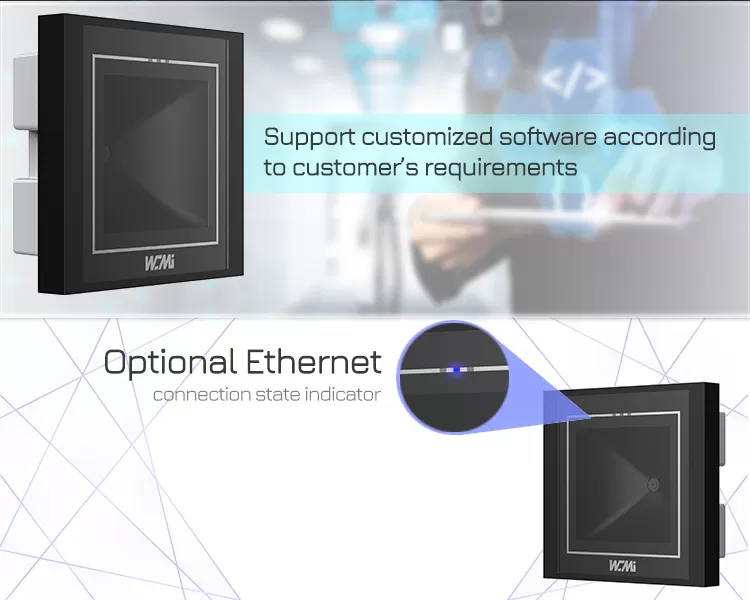

  • Support customized software according to customers’ requirements.

  • Various interface is available Wiegand, RS232, RS485, USB, Ethernet.

  • Suitable for such as control of the elevator, commuity, office, club, factory, school and so on.

Qr Access Control Reader


Introducing our cutting-edge solution for secure and streamlined access management – the Barcode Access Control Reader. This innovative device, also referred to as a Qr Access Control Reader, redefines the way you control entry, ensuring a seamless and efficient experience for users.

With the Barcode Access Control Reader, you're at the forefront of modern access control technology. Designed to meet the evolving demands of various industries, this Qr Access Control Reader boasts unparalleled versatility and functionality, making it an indispensable tool for enhancing security measures.

Our Barcode Access Control Reader offers a sophisticated blend of convenience and reliability, allowing for quick and accurate authentication through QR code and barcode scanning. Say goodbye to traditional manual checks and embrace the future of access control with this state-of-the-art device.

Morphology InterfaceDimensions86mm*86mm*38mm
MaterialPC+ armoured glass
VoltageDC 12V(5V-30V)  ,USB 5V
Current<160mA 12V
Code Scanning PerformanceImage Sensor640 x 480 CMOS,30fps
View AngleHorizontal 63°, Vertical51°
Scan AngleRoll:360°, Pitch:±60°, Skew:±50°
Support CodeOn by default:EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QR Code、PDF417、DataMatrixOff by default:Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、 MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded
Reading Distance0-200mm (6-inch mobile phone, wechat QR payment code)
Resolution1D:≥5mil / 2D:≥10mil
Symbol Contrast≥ 25%
Recognition ModeActive / passive, with support for induction mode
Scan Code Feedback BeepBeeping; the green light indicates scanning code
Support CardISO14443A / B, support ID card physical ID, NFC mobile phone, Mifarecard
Environmental ParametersOperating Temperature-20℃ ~ 60℃
Operating Humidity5%RH~95%RH(Non-condensing)
Storage Temperature-40℃ ~ 80℃
Ambient Lighting0-80000Lux
Static ProtectionContact discharge ± 6KV and air discharge ± 12KV
IP ProtectionFront IP54

Qr Access Control Reader

Whether you're managing entry points in corporate environments, educational institutions, healthcare facilities, or public venues, the Barcode Access Control Reader provides a robust solution that adapts to your specific needs. Its user-friendly interface ensures that both administrators and users can effortlessly navigate the system, while its advanced scanning technology guarantees swift and accurate results.

Emphasizing precision, efficiency, and adaptability, the Barcode Access Control Reader takes access management to the next level. By incorporating this cutting-edge technology into your infrastructure, you're investing in a secure and seamless access control solution that aligns with the demands of the digital age.

Upgrade your access management strategy today with our Barcode Access Control Reader – the ultimate choice for those who prioritize security, efficiency, and innovation. Trust in our expertise to elevate your access control experience, redefine security protocols, and simplify the way you manage entry points. Choose the future with our Qr Access Control Reader and experience the evolution of access control firsthand.
