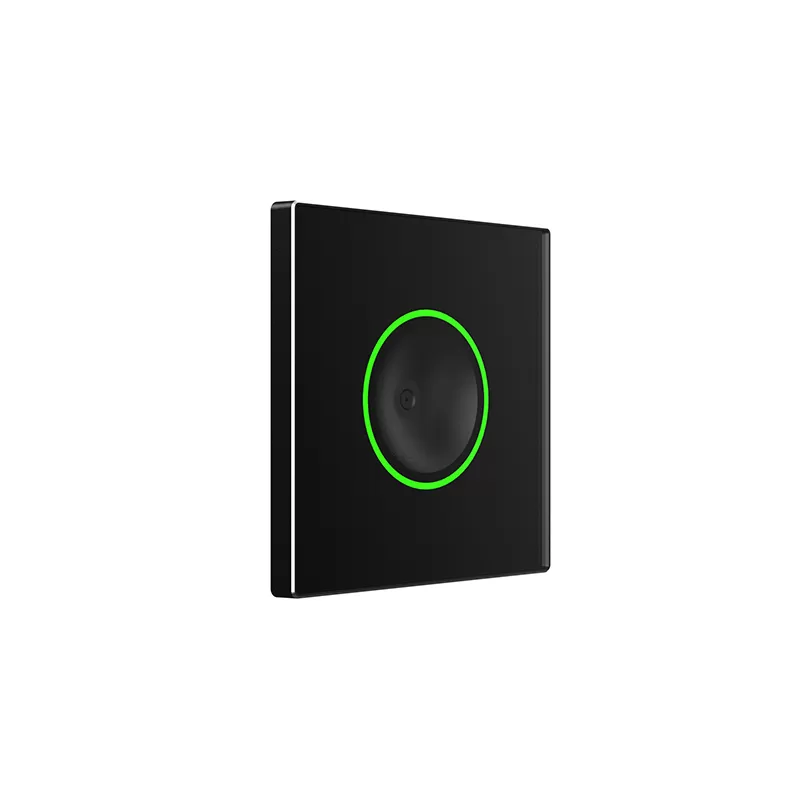

AC8130 Ultra-thin Access Control Card Readers

  • The 4th generation I-SUBPIXEL algorithm of intelligent access control card readers.

  • Completely aluminum alloy housing, 7mm ultra-thin design.

  • Colorful background lighting effects.

  • Support 13.56Mhz NFC card reading.

  • The Barcode Scanner Access Control System can be customized according to customer requirements.

  • Various interface is available Wiegand, RS232, RS485, USB.

  • Application scenarios-- elevator control, community, office, clubhouse, factory school, etc.


Barcode Scanner Access Control Systems have become a necessity in today’s world.

Combined with contemporary design and sophisticated scanning technology, we provide scalable access control solutions to restricted areas within your business premises.

If you have sensitive information or equipment that needs protecting from unauthorized usage or theft, using our Ultra-thin Access Control Card Readers will ensure that only authorized employees are able to get into those rooms by presenting their registered biometric data.

Barcode Scanner Access Control System Technical Parameters:





MaterialAluminium alloy + Tempered glass
VoltageDC 12V (5V-24V)
Current<160mA 12V
InterfaceWiegand, RS232, RS485, USB

Scan Code


Image Sensor640 X 480 CMOS@30fps
View AngleHorizontal 63°, Vertical 51°
Scan AngleRotation: 360°, Pitch: ±60°, Deflection: ±50°
Support Code

Default Open: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QR Code、PDF417、DataMatrix

Default Cloth: Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded

Reading Distance0-230mm (6-inch mobile phone, wechat QR payment code)
Resolution1D:≥5mil / 2D:≥10mil
Symbol Contrast≥ 25%
Recognition ModeActive/passive, with support for induction mode
Scan Code Feedback BeepBeeping; the green light indicates scanning code
Support CardISO14443A / B, support ID card physical ID, NFC mobile phone, Mifarecard



Operating Temperature-20℃ ~ 60℃
Operating Humidity5%RH~95%RH(Non-condensing)
Storage Temperature-40℃ ~ 80℃
Ambient Lighting0-80000Lux
Static ProtectionContact discharge ± 6KV and air discharge ± 12KV
IP ProtectionFront IP54

A door access control system is a highly effective method to secure the physical security of offices, homes or buildings by allowing only authorized or registered users to access specific doors within the premise by means of the implementation of a keyless system. There are many advantages of door access control systems as compared to traditional locks and keys such as eliminating the need to replace misplaced keys and the risk of terminated employees duplicating the keys.

What are the advantages of a Barcode Scanner Access Control System?

Can be used indoors and outdoors

Access control may be required both indoors and outdoors. In the first case, consider, for example, giving access to specific areas such as meeting rooms or archives. An example of outdoor use is opening a gate. Access control systems that you use outside must withstand a knock and a heavy rain or snow shower.

Wide variety

The market for Outdoor Card readers is diverse. Many variants are available. Think of wide and narrow card readers and scanners that work with or without a code.

Barcode Scanner Access Control System

Ease of use

Outdoor Card Reader ensures ease of use. Time-consuming key management (issue, collect, transfer, and replace keys, create new keys for new employees) is a thing of the past. The user, in turn, no longer has to wait at the gate or reception and gains faster and easier access to the desired areas or facilities. Most Outdoor Card Readers are also quick and relatively easy to install.


Outdoor Card Reader is quick and easy. In addition, it is possible to issue temporary access cards for visitors or guests. This makes the system scalable and ensures that security grows smoothly with the growth of your organization.


An access control system with a card reader is easy to secure. For example, you can immediately block or revoke cards if someone loses their card or if an employee leaves your organization. Furthermore, in the event of theft or loss of a card, you do not have to replace the door cylinder.

Barcode Scanner Access Control Systems save you time and money, by granting your employees or members access in seconds, helping you save on staff man-hours and service costs.

You can get more out of your building property—more comfort and more security. Our Outdoor Card Readers let you monitor activity on your doors while keeping unauthorized individuals out completely.

Outdoor Card Reader

If interested, feel free to contact us for catalogs of outdoor card readers or request a pricing quote that would suit your needs.


It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service.
